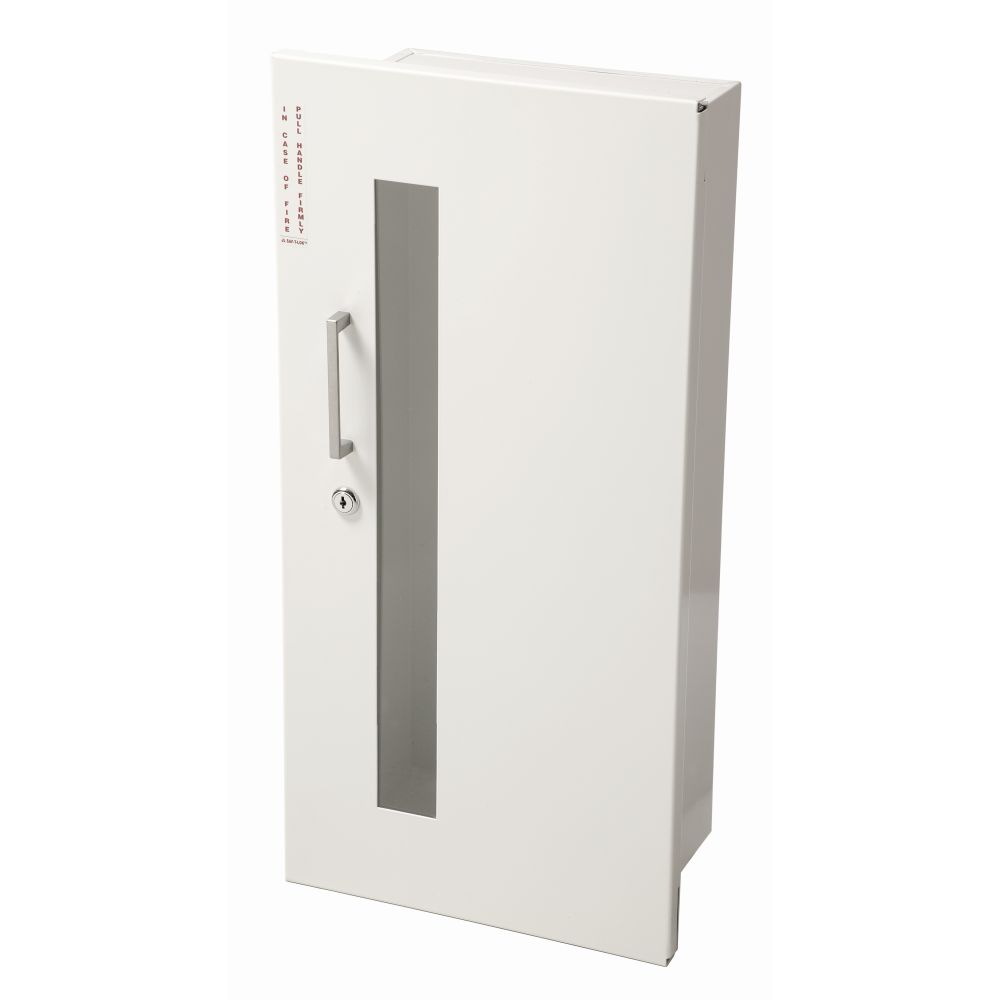

Door & Trim Construction: The 7/8” thick, formed cabinet doors are available in 304 stainless steel with #4 finish, US10 satin bronze, US10B oil-rubbed bronze, US3 polished brass, clear anodized aluminum or powder-coated steel.
Door Styles: Doors feature two concealed hinges at top & bottom of door, and roller catch. “V” and “S21” doors can be opened from the bottom of the cabinet using the concealed ABS cup handle in the door. “W “or “L22” door styles have a pull installed approximately 3/4” above lock which is centered top to bottom on the door. L24 doors have no pull, and are opened by key only. Door pulls match cabinet finish.
Tub: The tub is constructed of cold rolled steel with white powder-coat finish standard. Tub forms a 1” flange to cover cut edges of wallboard material. 5900 has shelf 12” from bottom
Options: Paint colors, finishes, pulls, alarms.
Listings and Ratings: UL listed and labeled as an approved membrane penetration firestop system for up to 2 hours in accordance with UL 1479 (ASTM-E814) and CAN/ULC-S115.
