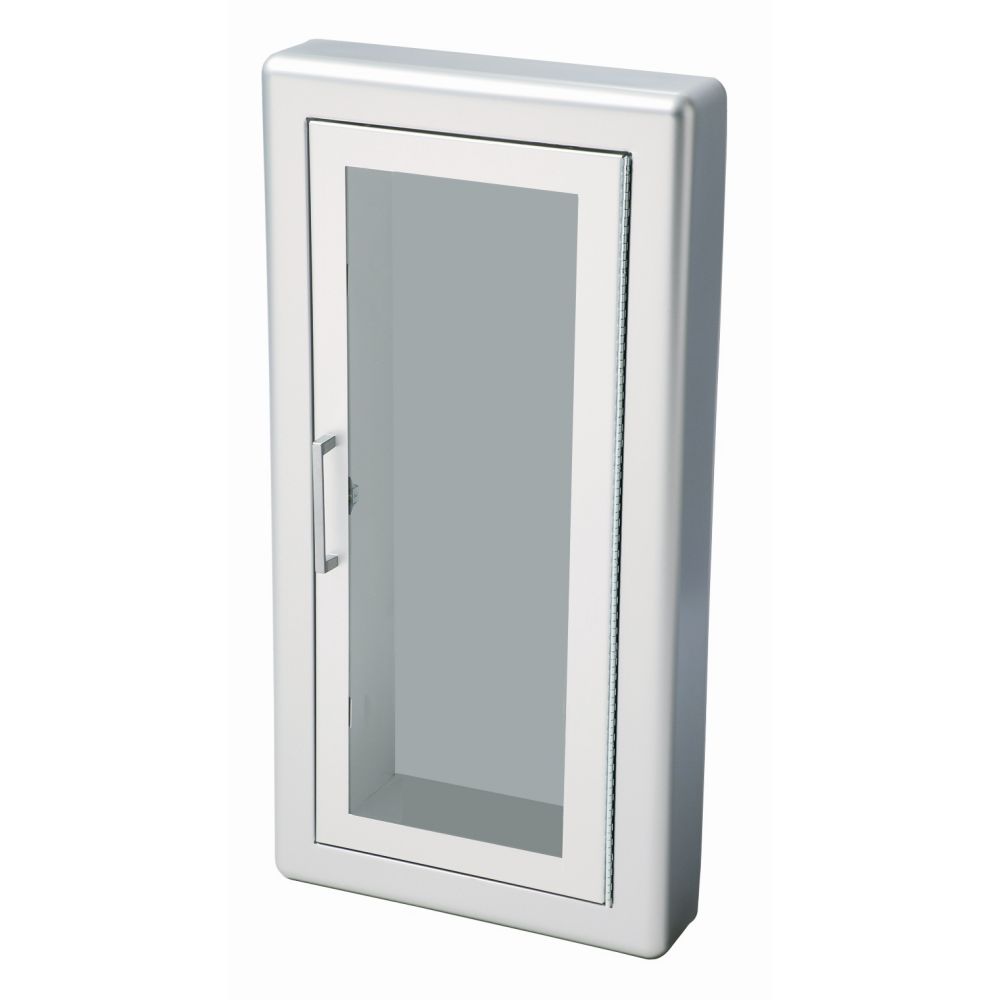

Door & Trim Construction: Clear anodized aluminum. Flush cabinet doors with a 5/8” door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. All models have 1-3/4” wide trim on frame and 1-1/4″ trim on doors with glazing. Rolled edge models are constructed of mechanically-joined extrusions, except for models 1827 and 1027 which are die-formed. Die formed corners provide an attractive, rounded edge.
Trim Style & Depth: Recessed – 3/8” flat trim, Semi Recessed – 1-1/4”, 1-1/2” Square Edge or 2-1/2”, 3”, 4”, 4-1/2” Rolled Edge (4” has recessed flush pull). Surface-mount models have a square edge.
Tub: The tub is constructed of steel with white powder-coat finish. Surface-mounted models have aluminum tub.
Options: Fire-rated, glazing, pulls, dark bronze finish, alarms.
Listings and Ratings: UL listed and labeled as an approved membrane penetration firestop system for up to 2 hours in accordance with UL 1479 (ASTM-E814) and CAN/ULC-S115.
