Product Specifications
Material: 1-1/2″ square steel post, 10 gauge steel plate mount.
Finish: Yellow powder coat paint.
Mounting: Mounts to front inside of curb with six self-tapping screws.
Load Rating: 200 lbs design load rating.
Foldable Series – Ladder Post – LP-6

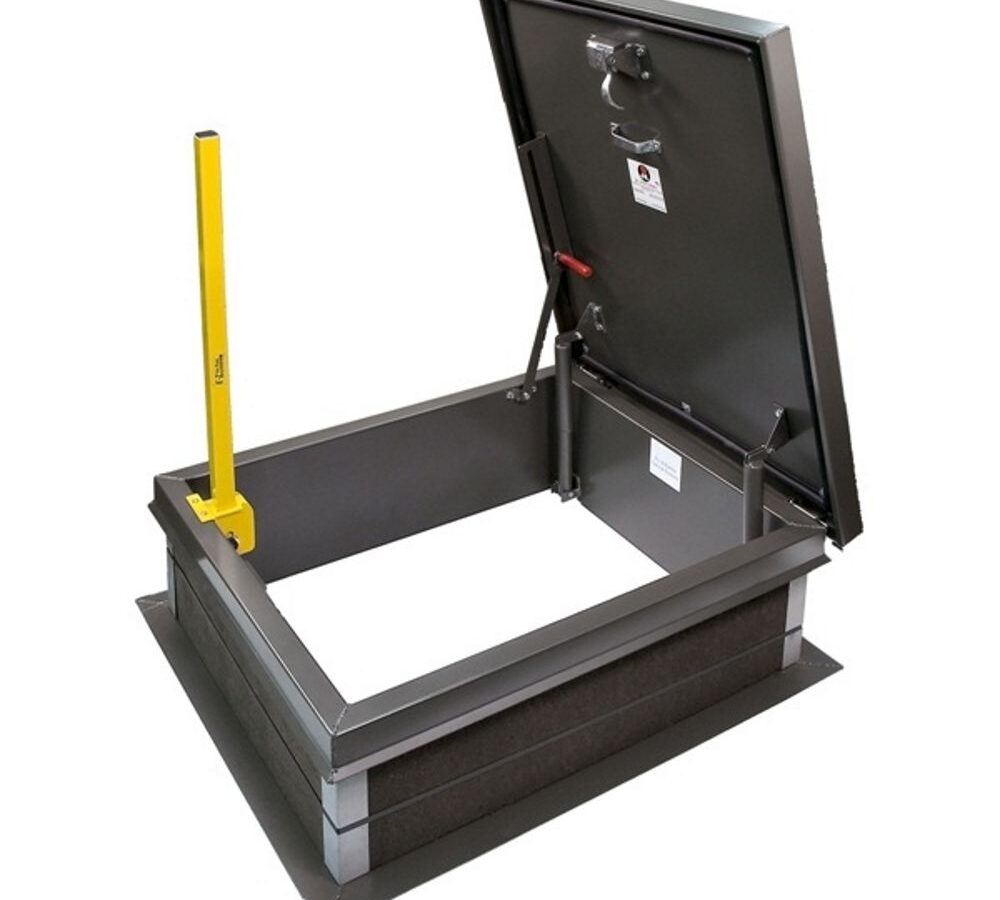

The EZ-UP LP-6 ladder post provides easy and safe access through a roof hatch. The assembly permanently mounts to the roof hatch and acts as an extension to the ladder to enable users to safely enter and exit a roof access hatch. This ladder post folds down into the curb when not in use and can be raised and lowered with one hand.
Downloads
Cross-Reference
| Part Number | Previous Model | Material | Finish | Acudor | Babcock-Davis | Nystrom | Bilco | Milcor | Elmdor |
|---|---|---|---|---|---|---|---|---|---|
| LP-4 | - | Steel | Yellow Powder Coat | TSP-1 | BSPY | SPY | LU-1 | - | TSP-1 |
| LP-6 | - | Steel | Hot Dip Galvanized | SLE-Y | - | SPG | LU-2 | - | TSP-1 |
| RSLP-G | LP-5 | Steel | Hot Dip Galvanized | TSP-2 | BSPG | - | - | MUSB | - |
