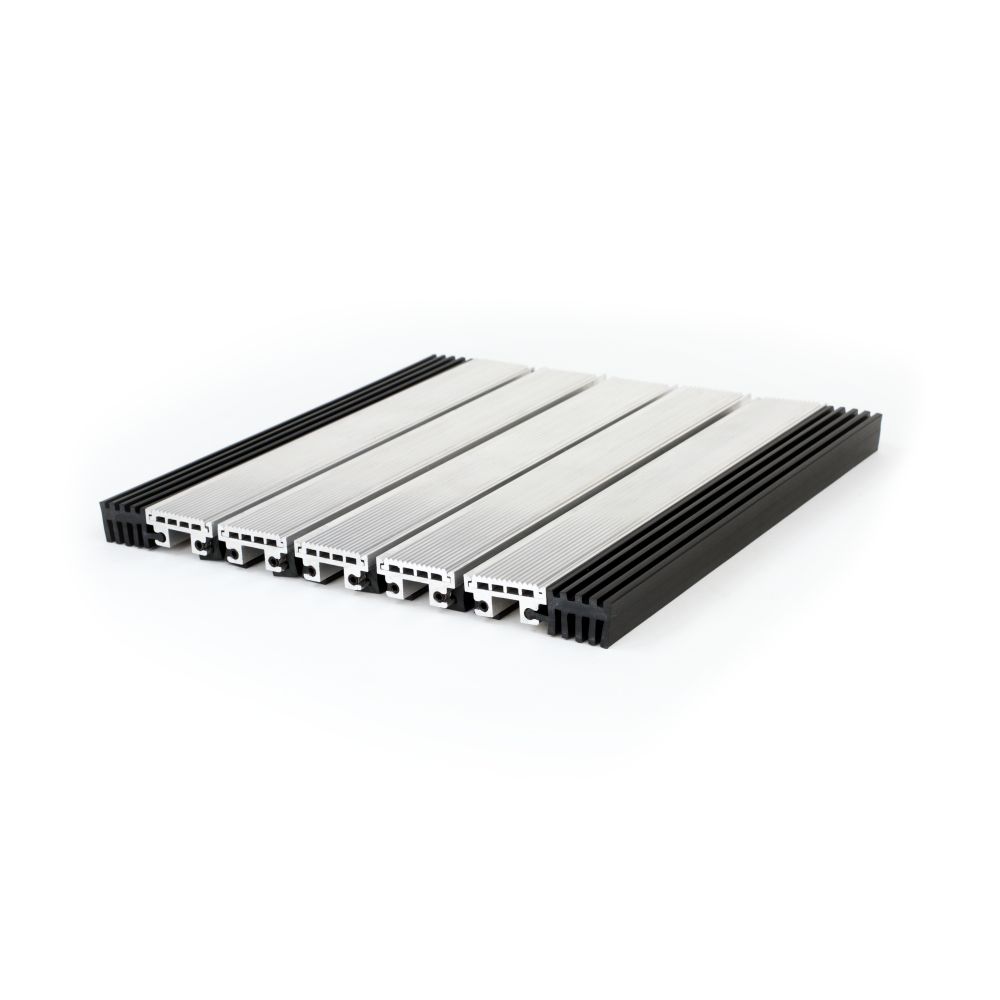

Activ-Grate™ 600 Series – 3/4″ Roll-Up Entrance Grate

Designed for wheel loads of up to 1000 lbs, the tough 600 series grating can withstand heavy traffic. Recessed installation of this grating always provides a smooth transition to the interior of your building.

3/4″ or 1-3/16″ deep recesses for installation allow more moisture and building contaminants to collect below the walking surface.
Drainage holes in the LDPE hinges between treads provide a cleaner and quieter entrance grating.

Product Specifications

Material:6063-T6 extruded aluminum alloy tread rails and frames.

Depth: 3/4” (19 mm).

Frame Finish: Mill.

Tread Spacing: 1-1/2” (38.1 mm) on center with 8 treads per foot in the direction of travel.

Spacing Between Rails: Heelproof spacing of 5/32”.

Rolling Wheel Load Rating: 1000 lbs.

Installation Options: Surface-mounted , recessed, door threshold.

Tread Options: Carpet, vinyl, serrated aluminum or Tuff Tread polypro carpet.

Frame Options: Color anodized

Downloads

Model	Description	Submittal	Tread Options	Warranty	Install, O&M	3 Part Specs	Catalog
EFRA6	Grating with Recessed Aluminum Frame	PDF	PDF	PDF	PDF	DOCX	PDF
EFRC6	Grating with Cast-in Place Frame	PDF	PDF	PDF	PDF	DOCX	PDF

Cross-Reference

View Cross Reference Chart

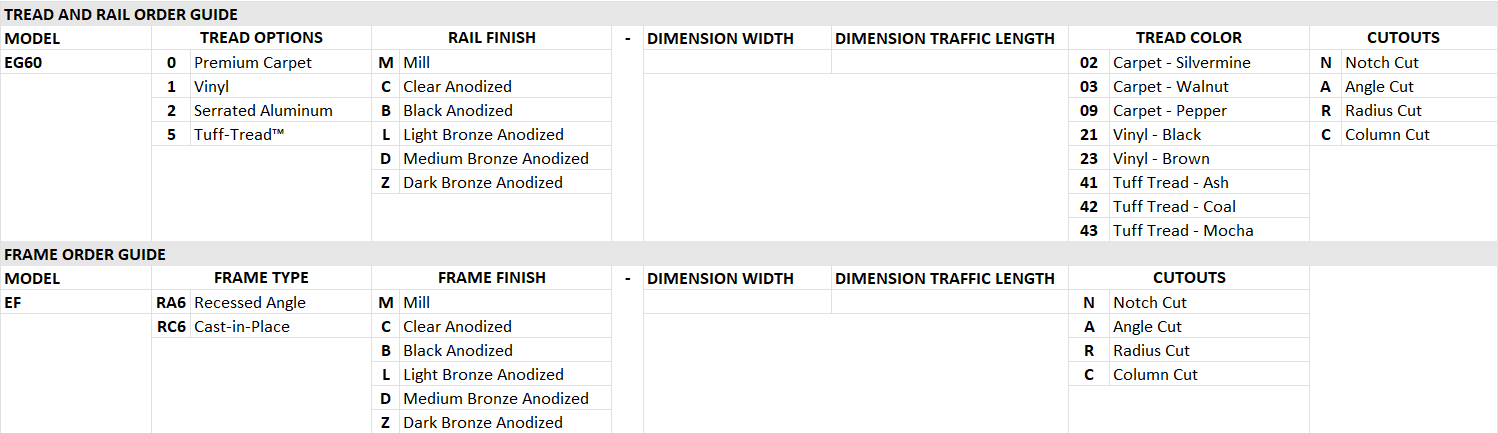

Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.
