Airtight / Watertight Access Panel
Airtight / Watertight Access Panel

NGP Airtight / Watertight Access Panel

JL Industries

The NGP Series is ideal for applications where moisture or air movement is a consideration through walls or ceilings. Panel has gasketing on all four sides to ensure continuity of the seal and is good for both interior & exterior applications. Door opens 180° for full access into opening.

Performance:
Independently lab-tested for Air Infiltration / Ex-filtration and Water Penetration Resistance in accordance with ASTM E283 and ASTM E331. Maximum size tested 24”X 36” (610 mm x 914 mm).

Categories: Access Panels, Airtight, Exterior, Non-Rated Tags: 08 31 00, access door, air tight, airtight, astm e283, astm e331, ceiling panel, exterior, flush panel, galvanneal, galvanneal steel, metal door, ngps, stainless steel panel, steel panel, wall panel, water tight, watertight Brand: JL Industries
  • Specifications
  • Downloads
  • Order Guide
  • Technical Articles
  • Options & Accessories
  • Related Products

Product Specifications

Frame Material: 16 gauge (1.61mm) galvanneal steel

Flange: Exposed flange width 3/4″ (19 mm)

Door Material: 16 gauge (1.61mm) formed door of galvanneal steel

Finish: Off white prime coat

Hinge: Continuous stainless steel piano hinge, opens 180 degrees

Gasket: Black, closed cell general purpose blended rubber; EPDM/Neoprene/SBR

Latch: Screwdriver cylinder cam latch

Stainless Steel Option – NGPS

Downloads

ModelDescriptionSubmittalWarrantyInstall, O & M3 Part SpecsCatalog
NGPStandard FlangePDFPDFPDFPDF

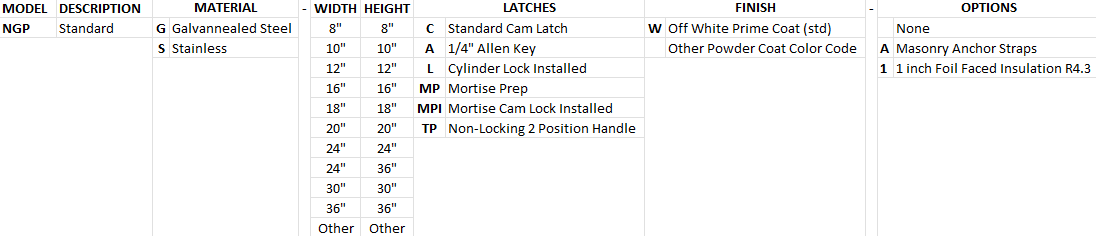

Order Guide

Technical Articles

Click on the following to view.

  • What is Independent Third Party Testing of Products?

Options & Accessories

Click on the following to view.

    • Color Chart
    • Paint Recoating Suggestions

Related Products

  • CT Frameless Recessed Door Acces Panel

    CT Series – Recessed Door Access Panel
