STC Series – STC 65 Rated Access Panel | Activar Construction Products Group

Product Specifications

Frame and Door Material: Cold rolled steel, galvannealed or stainless steel.

Standard Finish: Powder coat white or 304 stainless steel with #4 finish.

Insulation:2” Mineral Wool.

Gasketing: EPDM foam seal on frame.

Hinge: Continuous steel rod hinge.

Latch: Black, lockable compression paddle.

Performance: Independently lab-tested to STC 65 and OITC 51 according to: ASTM E90. Classified in accordance with ASTM E413, and ASTM E1332.

Model	Description	Submittal	Warranty	Install, O & M	3 Part Specs	Master Spec	CAD (.dwg)	Environmental	Catalog
STC	STC-65 Panel	PDF	PDF	PDF	Word	DOC	.dwg	PDF	PDF

Model	Prev	Acudor	Karp	Williams Bros.
STC	STC	ACD-2064	KRP-STC	STC 650

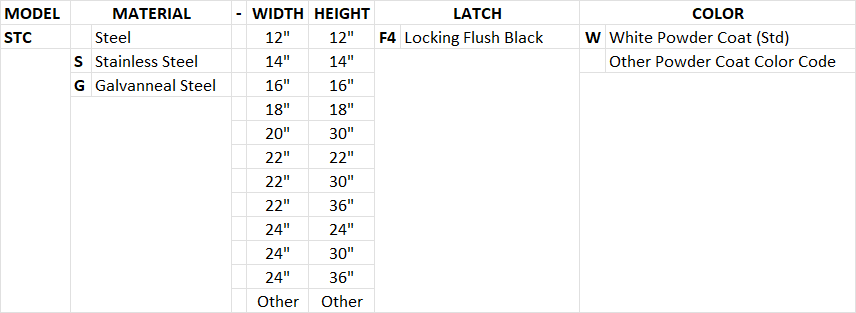

STC Series Sound Blocking Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.

Click on the following to view.
