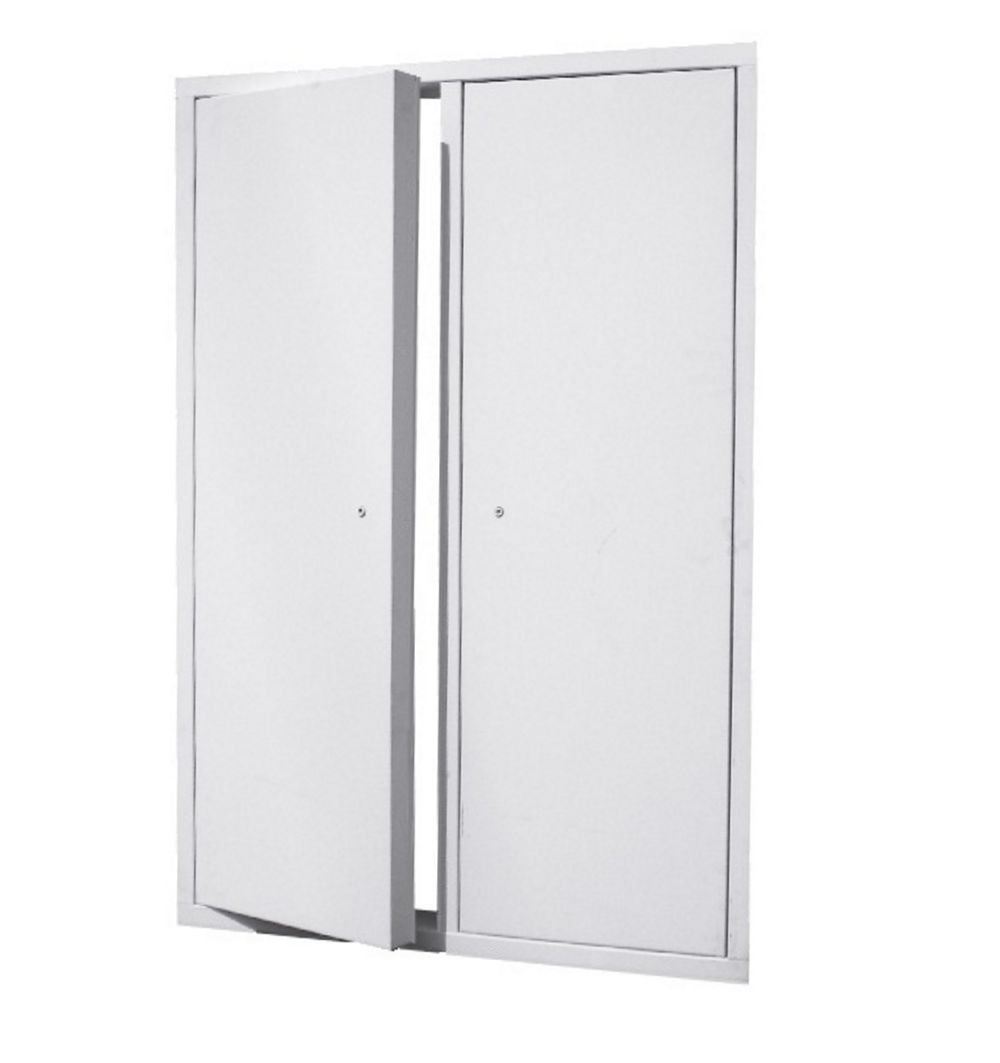

Product Specifications
Frame Material: 16 ga (1.6 mm) Galvanneal steel up to and including 30” x 48”. Larger sizes in either dimension are 14ga (2mm) Frame Depth: 2-1/4″ (57 mm)
Flange: 7/8” (22 mm) wide up to and including 36” x 36” (914mm x 914mm). 1-1/4″ (32 mm) wide for larger panels
Door Panel Material: 18 ga (1.31 mm) Galvanneal steel
Liner Material: 22 ga (.64 mm) Galvanneal steel
Standard Finish: Off-white prime coat
Insulation: High-temp ceramic fiber insulation
Hinge: Concealed continuous rod hinge on height dimension. sizes longer tha 48″ (1219 mm) will have a continuous piano hinge
Closer: The automatic panel closer will close & latch the door from an open position of approximately 90° as required by NFPA 80
Latch: Self-latching flush 1/4” (6.35mm) allen key with Interior release
CERTIFICATIONS:
Intertek Warnock Hersey Listed and Labeled:
2 Hour Fire-rating for vertical and horizontal installation
Temp Rise Max: 30 minutes 250° F (139° C), 60 minutes 450° F (250°C)
Testing Standards:
Vertical: NFPA 252, UL 10B, CAN/ULC S10 4
Horizontal: UBC 43-7
