The durable 800 series with aluminum hinges stands up to dirt with both the tread of your selection and aluminum scraping bars built in to each rail. The 800 series can be surface-mounted or recessed into a 7/16” deep opening.
Material: 6063-T6 extruded aluminum alloy tread rails and frames.
Depth: 3/8” (9.5 mm).
Frame Finish: Mill.
Tread Spacing: 2” (50.8 mm) on center with 6 treads per foot in the direction of travel.
Spacing Between Rails: Heelproof spacing of 5/16”.
Rolling Wheel Load Rating: 350 lbs.
Installation Options: Surface-mounted , recessed, door threshold.

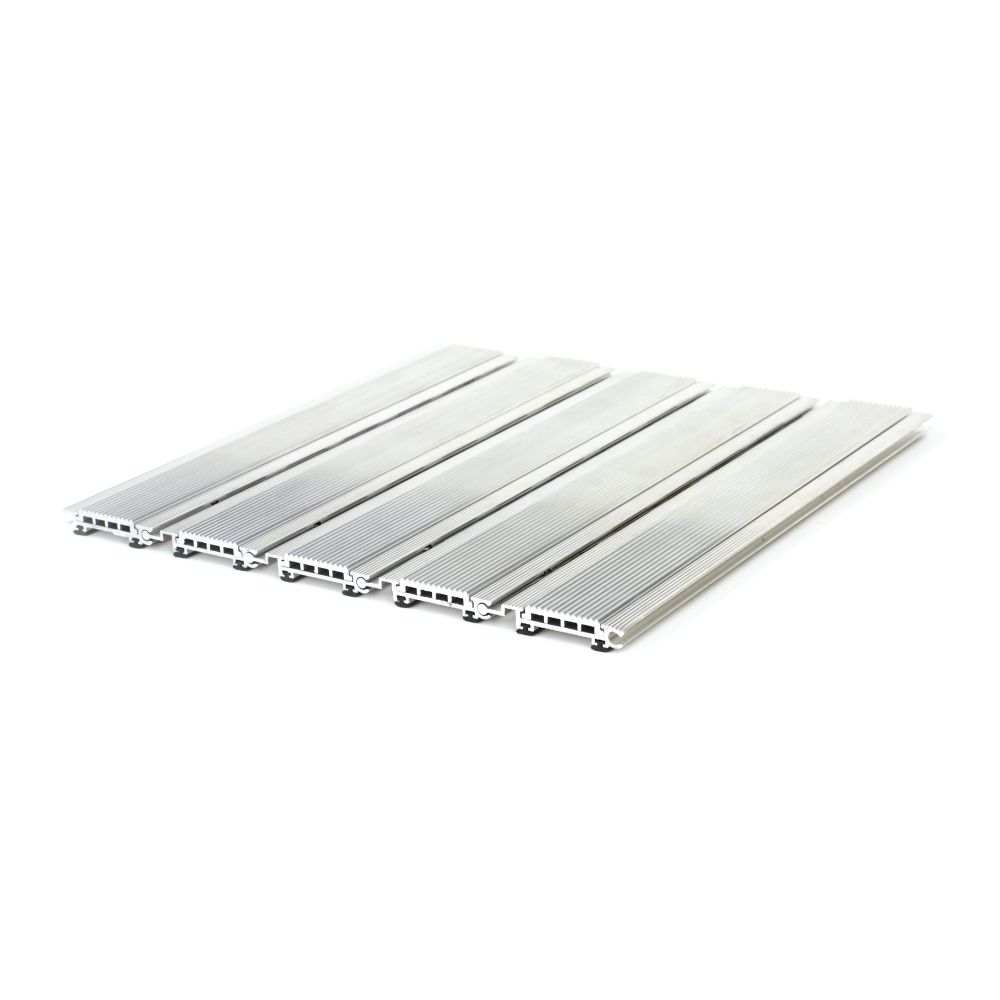

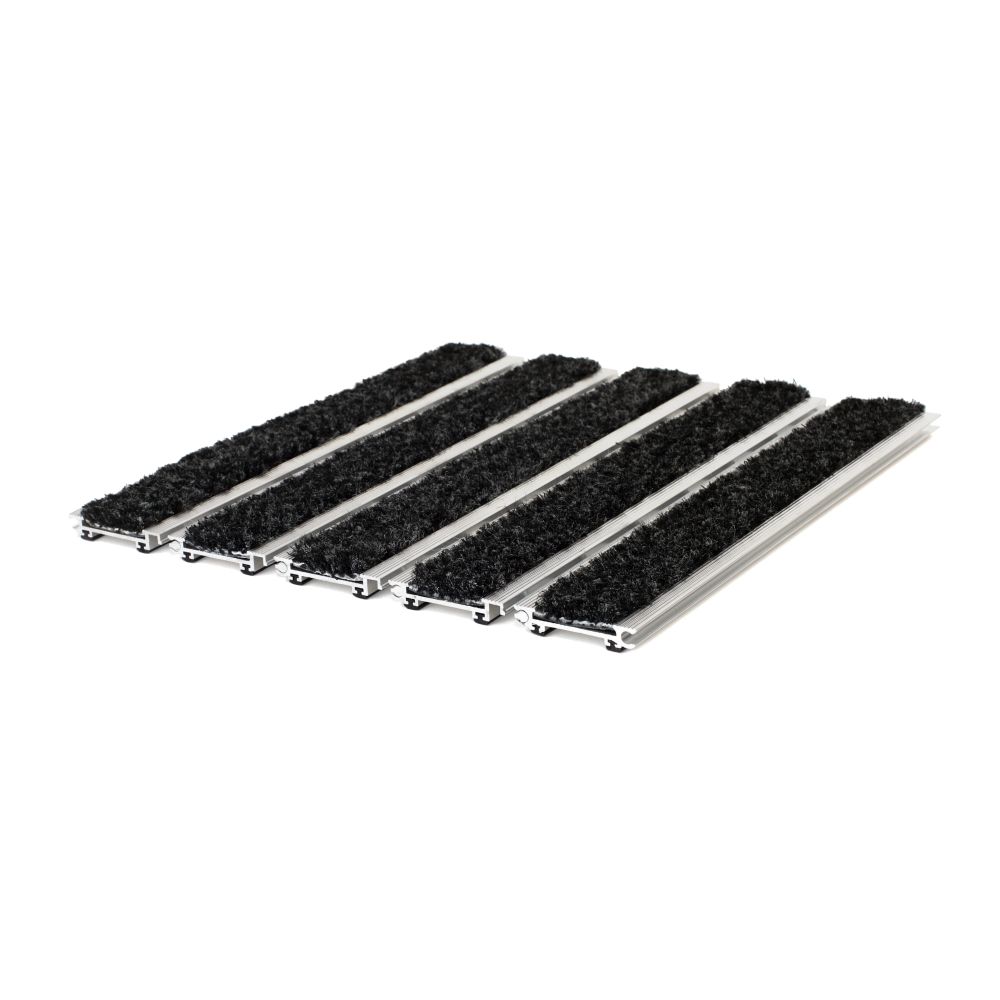

Tread Options: Carpet, vinyl, serrated aluminum or Tuff Tread polypro carpet.
Frame Options: Color anodized
| Model | Description | Submittal | Tread Options | Warranty | Install, O&M | 3 Part Specs | Catalog |
|---|---|---|---|---|---|---|---|
| EFRA8 | Recessed Aluminum Frame | DOCX | |||||
| EFRC8 | Cast-In Place Frame | DOCX | |||||
| EFRT8 | Recessed Threshold Frame | DOCX | |||||
| EFSA8 | Surface Mounted Aluminum Frame | DOCX | |||||
| EFSV8 | Surface Mounted Vinyl Frame | DOCX | |||||
| EFST8 | Surface Mounted Base Tray | DOCX |
Note: Not all sizes and options are listed, or available for all models, see submittal for details.
