Product Specifications

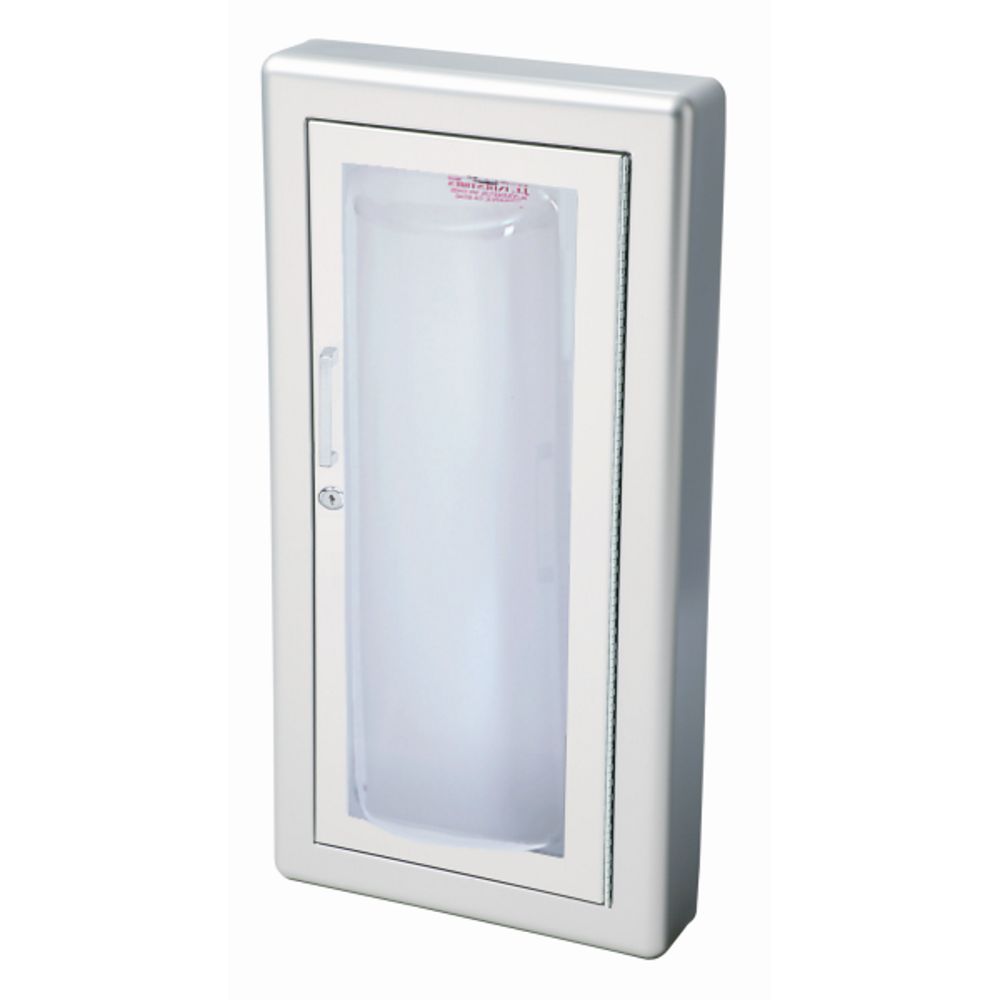

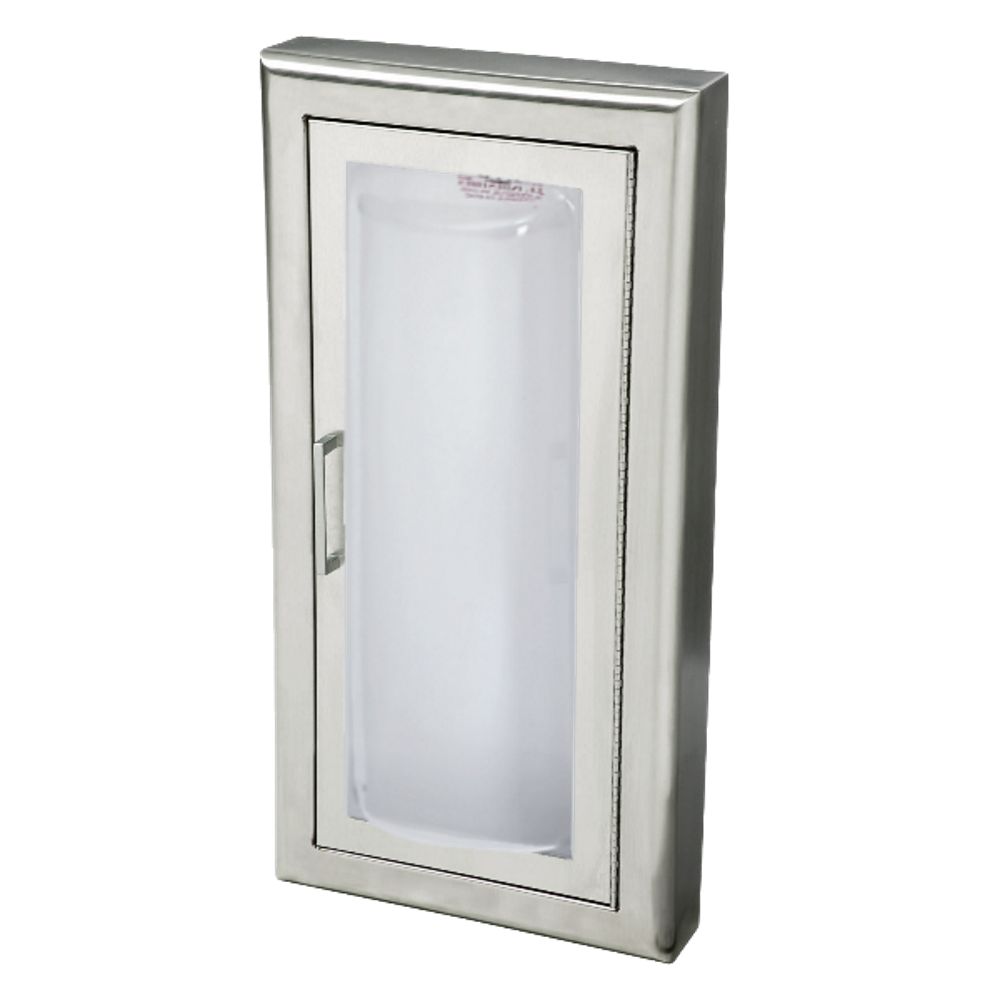

Door and Trim Construction: US10 satin bronze, US3 polished brass, clear anodized aluminum, #4 stainless steel or CRS with white powder coat finish. Flush cabinet doors with a 5/8″ door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch.
Bubble: Acrylic bubble allows 180º extinguisher visibility. 2 1/2″ projection for 1500 series, 3 1/2” projection for 2500 and 4500 series.
Trim Style and Depth: Recessed – 3/8″ flat trim, Semi-Recessed – 1 1/4″, 1 1/2″ Square Edge or 2 1/2″, 3″, Rolled Edge. Surface-mount has a square edge or optional rolled edge for steel or stainless steel upon request. All models have 1-3/4” wide trim on frame and 1-1/4″ trim on doors.
Tub: Constructed of cold rolled steel with white powder-coat finish standard. Surface-mounted tubs are the same material and finish as the trim.
Options: Fire-rated, paint colors, finishes, pulls, alarms.
Listings and Ratings: UL listed and labeled as an approved membrane penetration firestop system for up to 2 hours in accordance with UL 1479 (ASTM-E814) and CAN/ULC-S115.
