Activar Construction Products Group
Commercial Construction Products

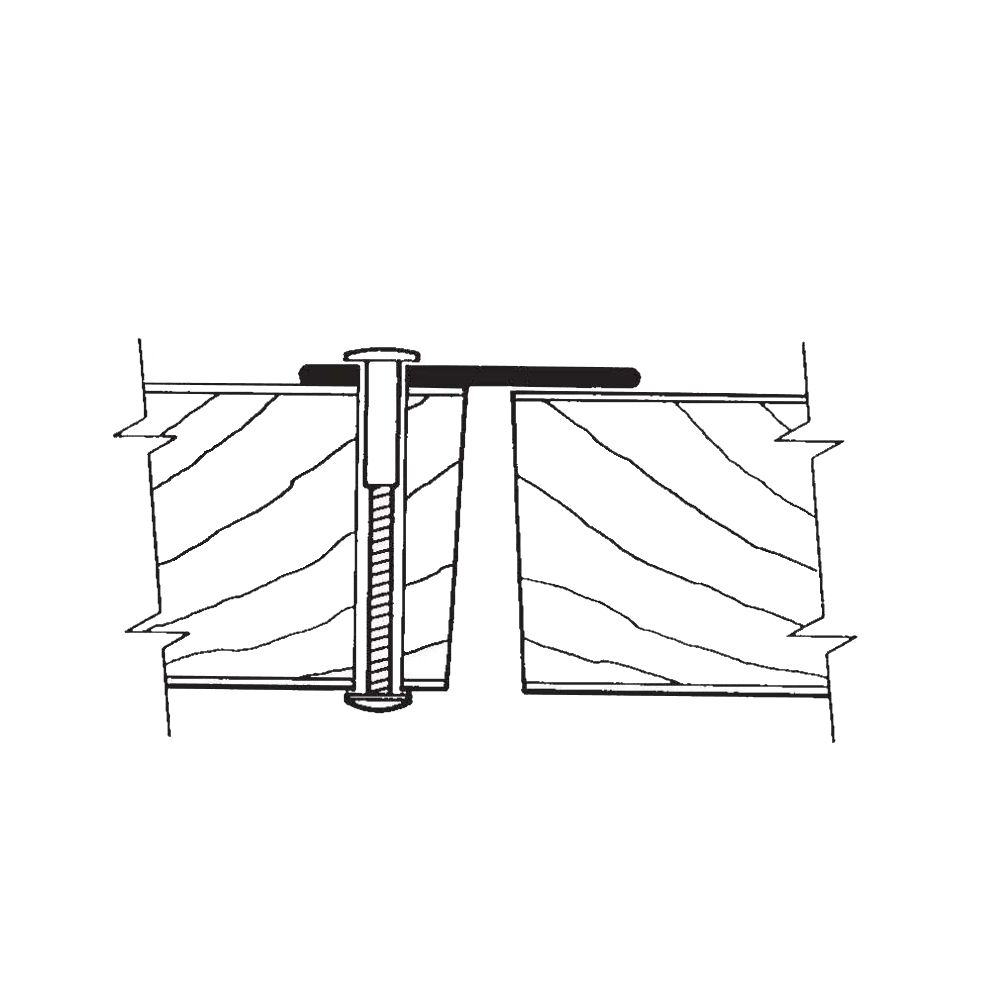

Protect your wood, composite or metal doors from carts and equipment in high traffic areas with door edges. Latch side door edge guards protect the exposed of the door when open. Commonly ordered three-sided. Standalone Astragals, can be added to doors to help mitigate sound, light, weather, and smoke infiltration.
Material: DL – 20 gauge cold rolled steel, DA- 1/8″ cold rolled steel.
Finish: Mineral bronze powder coat
Mounting: Countersunk mounting holes. DA includes #8 thrubolt.
Height: Standard 80″, Maximum 108”
Wing Width: DL – 1″ , DA – 2″.
Door Depth: 1-¾”
Options: 18 gauge, wing widths, materials, cutouts, fire-rating marking, paint colors
| Air Louvers | Previous Model | Description | Material | National Guard | All Metal |
|---|---|---|---|---|---|
| DL9 | ME90 | Door Edge | Cold Rolled Steel | 541 | - |
| DL8 | ME | Door Edge | Cold Rolled Steel | 543 | (2) 206 |
| DL7 | MEDE | Door Edge | Cold Rolled Steel | 545 | - |
| DL5A | MEA905 | Door Edge | Cold Rolled Steel | - | 204 |
| DL3A | MEA5 EA | Door Edge | Cold Rolled Steel | 565 | 205 |
| DL2A | MEADE5 EA | Door Edge | Cold Rolled Steel | - | 210 |
| DA | BA | Door Astragal | Cold Rolled Steel | - | 215 |
| DL8A | MEA | Door Edge | Cold Rolled Steel | - | - |
| DL9A | MEA90 | Door Edge | Cold Rolled Steel | - | - |
| DL7A | MEADE | Door Edge | Cold Rolled Steel | 555 | - |
| DHT4, DHT5 | HGSS | Hinge Side Door Edge | Stainless Steel | - | - |
| Air Louvers | Previous Model | Description | Material | Rockwood | Hager | Trimco | Burns |
|---|---|---|---|---|---|---|---|
| DLMT5 | DE1 | Door Edge | Cold Rolled Steel | 300 | 180H | - | 301 |
| DLMT4 | DE2A | Door Edge | Cold Rolled Steel | 301 | 180K | - | 302 |
| DLM5 | DE3C | Door Edge | Cold Rolled Steel | 302 | 180M | - | 303 |
| DLM4 | DE-5C | Door Edge | Cold Rolled Steel | 302B | 180P | - | 304 |
| DLT5 | DES-1A | Door Edge | Cold Rolled Steel | 304 | - | KE31-1 | - |
| DLT4 | DES-2A | Door Edge | Cold Rolled Steel | 305 | - | KE32-1 | - |
| DL5 | DES-3C | Door Edge | Cold Rolled Steel | 305 RKW | - | KE33-1 | - |
| DL4 | DES-5C | Door Edge | Cold Rolled Steel | 306B | - | KE33-2 | - |
Note: Not all sizes and options are listed, or available for all models, see submittal for details.
