Product Specifications
Material: 20 gauge cold rolled steel
Standard Finish: Mineral bronze powder coat
Fasteners: Flathead Phillips screws to match finish

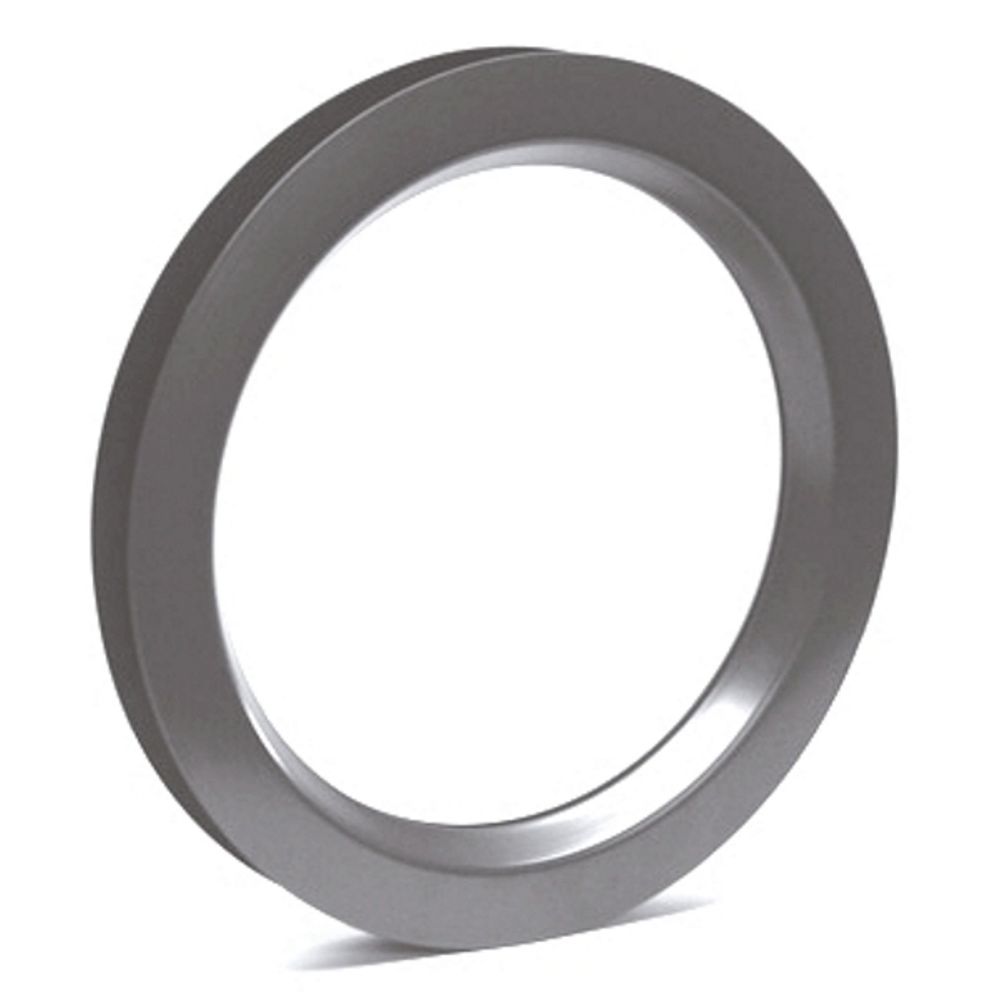

Size: Min: 4” x 4” – Max: see submittals. Round – 12″ 18″.

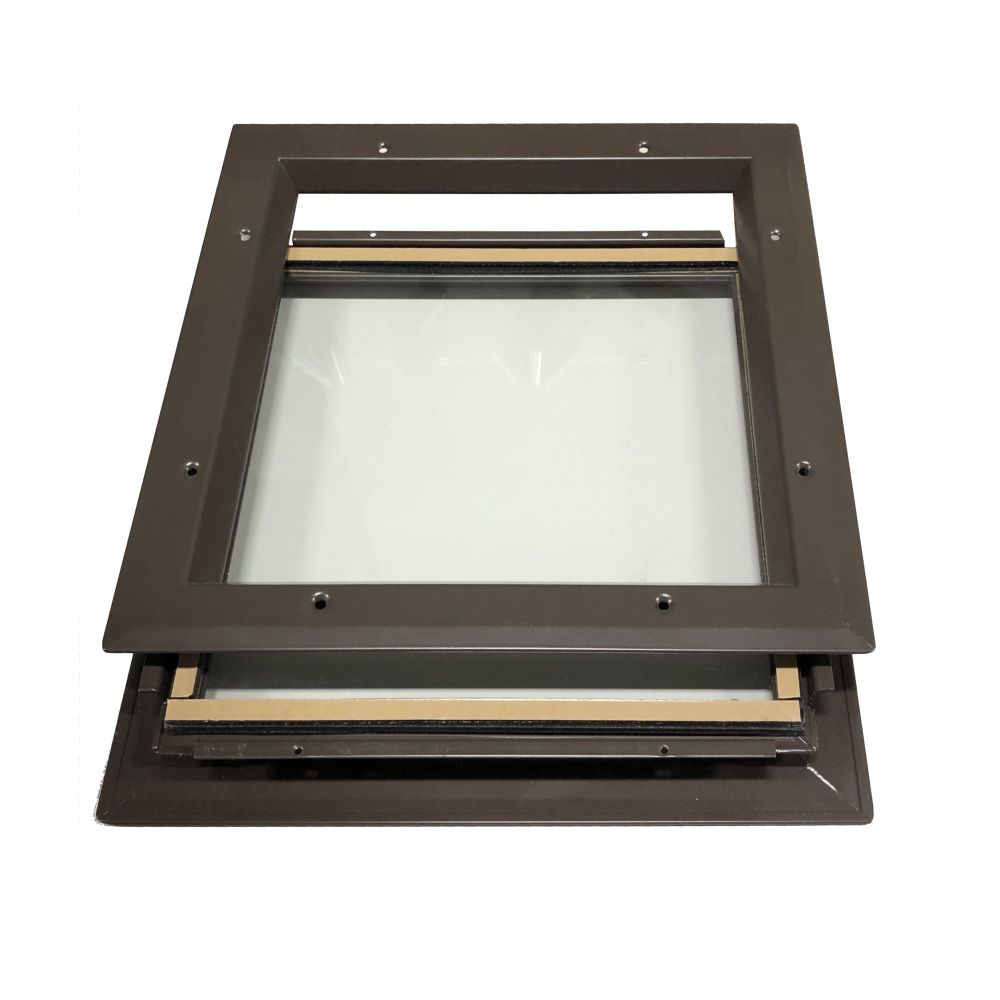

Glazing Thickness: VSLH/VWLH – 3/16″ to 5/16″, VSIG/VWLIG 3/16″ to 1-11/16″, VSLR-12″ and 18″
Door: 1″ to 3″ depending on frame.
Options: Wood veneer, round frame, stainless steel, galvannealed steel, zinc-plated steel, mullions, UL10C, PAK combination with glazing.
FIRE RATINGS: UL listed and labeled to ANSI/UL10B, UL10C and ULC-S104 when installed in properly rated and approved door. Ratings up to 180 minutes can be achieved depending on door type, application glazing and size.
See Options & Accessories tab for standard and custom PAK Submittals.
