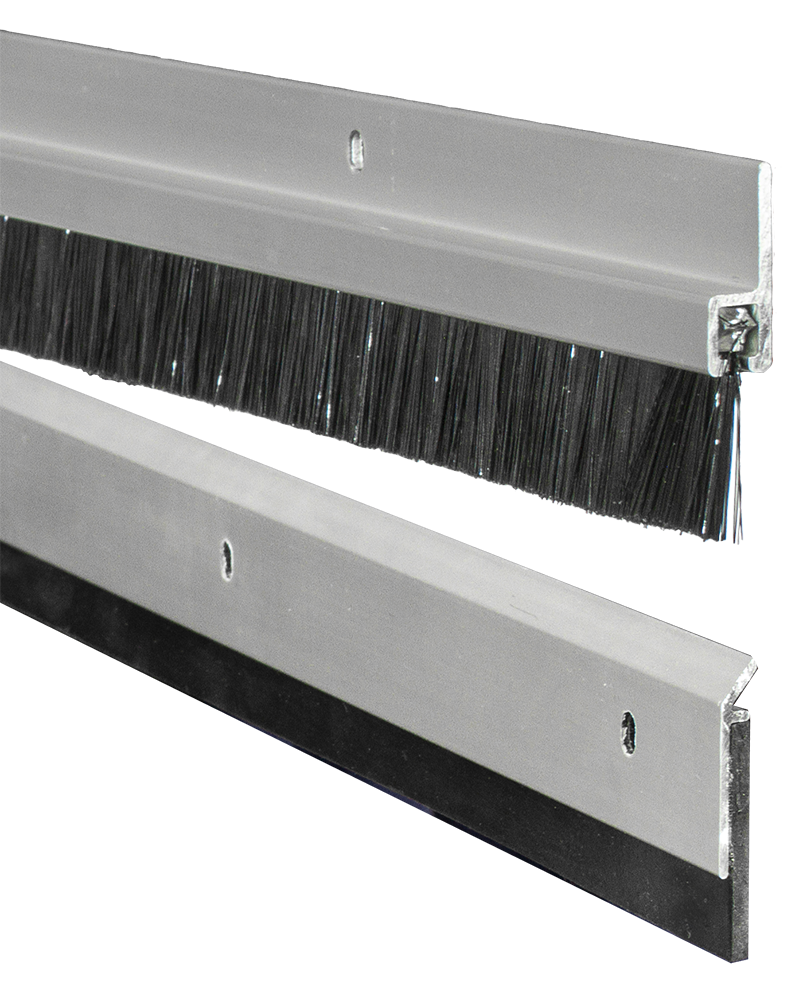

Product Specifications
Material: 6063-T5 Aluminum
Standard Finish: Mill
Insert: WT-967 – Nylon brush, WT-323 – Neoprene
Fasteners: Zinc-plated steel #6 x 5/8″ Philips pan head self- tapping sheet metal screws, use 7/64″ drill bit (6″ hole spacing)
Sizes:
Minimum: 6″
Maximum: 184″
Order size listed is exact cut size
Fire Rated: UL Classified per UL10B, CAN/ULC-S104, UL10C for use on listed steel frames and/or classified hollow metal and steel covered composite type fire doors rated 3 hours, wood composite to 1-1/2 hours, wood core type rated 20 min without hose stream.
Smoke and Draft Control: UL classified UL10C and UL 1784. Air Leakage Category H for use on “S” labeled doors. Air Leakage Category H for use on “S” labeled doors.
