Product Specifications
Frame Material: 16 gauge cold rolled steel.
Frame Depth: 2-1/2”
Flange: Exposed (FD) – 1″

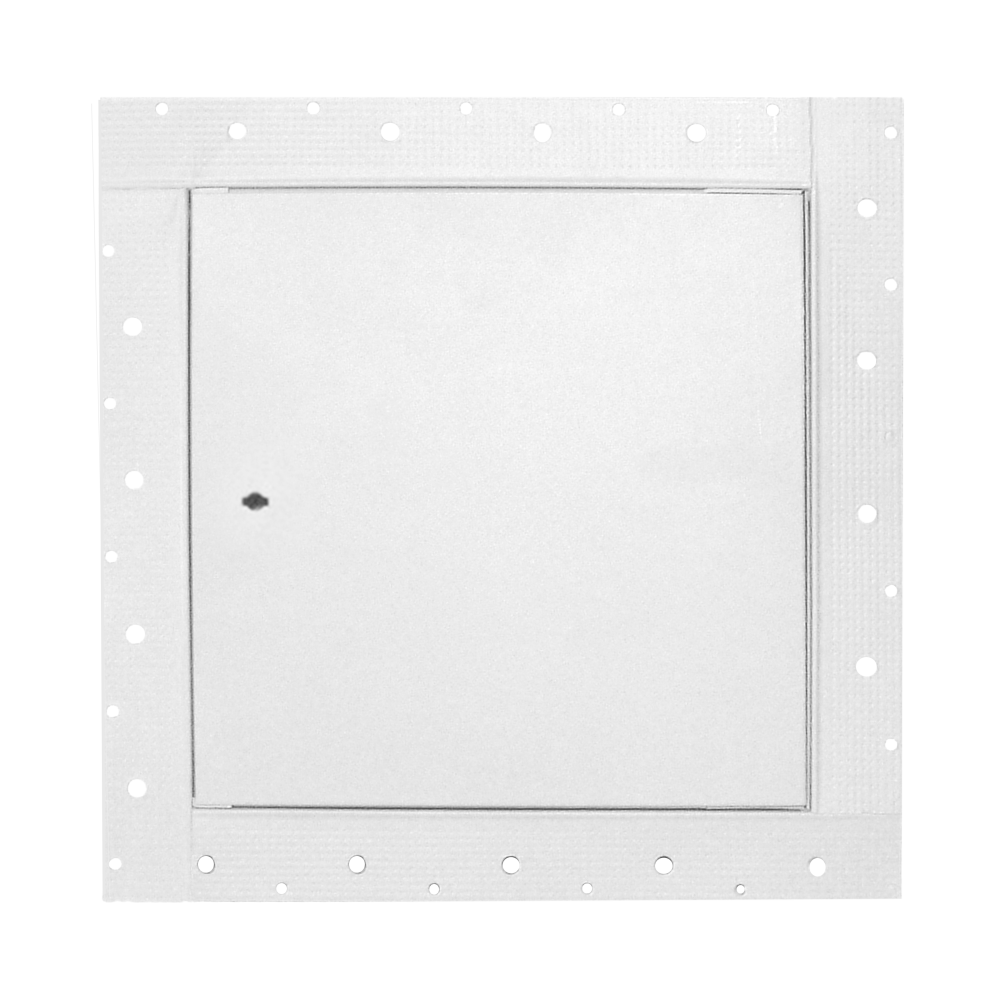

Drywall Bead (FDW) – 1″
Plaster Bead (FDP)- 1-3/8″
Door Panel Material: 20 ga. cold rolled steel
Standard Finish: White powder coat
Insulation: 2” mineral wool
Hinge: Continuous hinge
Closer: Panel automatically closes and latches from an open position of 90° as required by NFPA 80
Latch: Universal lock with ring and key
FIRE-RATING:
UL Certified and Labeled
Wall/Vertical: 1-1/2 hours, tested per ANSI/UL10B and CAN/ULC-S104
Intertek Warnock Hersey Listed and Labeled
Wall/Vertical: 1-1/2” hours, tested per ANSI/UL10B, 450°F temperature rise at 30 minutes
Ceiling/Horizontal: 3 hours non-combustible or 1 hour combustible, tested per UBC 43-7
Note: “B” label 1-1/2-hour fire door assemblies are allowed in 2-hour walls per IBC 2024 Table 716.1(2) Opening Fire Protection Assemblies
