Royal Series - Fire Blanket Cabinet or Combination Extinguisher/Blanket Cabinet

Royal Series – Fire Blanket Cabinet or Combination Extinguisher/Blanket Cabinet

JL Industries

The Royal Series of Cabinets is designed to hold a fire blanket. The 3600 models are 36″ high with a shelf to provide room for an extinguisher below. There are also Roller Blanket and Drop Type cabinets for quick access to the fire blanket in the event of a fire. All include a blanket that meets Title 16, CFR1610 testing standards.

Categories: Fire Protection, Specialty Fire Extinguisher Cabinets Tags: 10 44 13, 10 44 19, 10-44-00, 3535, 3600 cabinet, 3600 Extinguisher, 3600 Extinguisher Blanket, 3612, 3613, 3616, 3617, 3618, 3622, 3623, 3625, 3626, 3627, 3628, 3632, 3633, 3636, 3637, 3638, 9512S21, 9519, 9613, 9613221, Blanket, BLANKET CABINET, Blanket Only, C3600, c361, c362, c363 3615, CABINET FOR BLANKET, combination, div 10, Division 10, DROP, DROP BLANKET, dual cabinet, extinguisher, Extinguisher/Blanket Cabinets, Filter, FIRE BLANKET, fire cabinet, FIRE PROOF BLANKET, Fire Protection, Fire-Rated Cabinets, ROLLER, ROLLER BLANKET, ROYAL, ROYAL BLANKET, stainless steel, Steel, VERTICAL ROLLER Brand: JL Industries
  • Specifications
  • Downloads
  • Cross-Reference
  • Stock List
  • Order Guide
  • Technical Articles
  • Options & Accessories
  • Related Products

Product Specifications

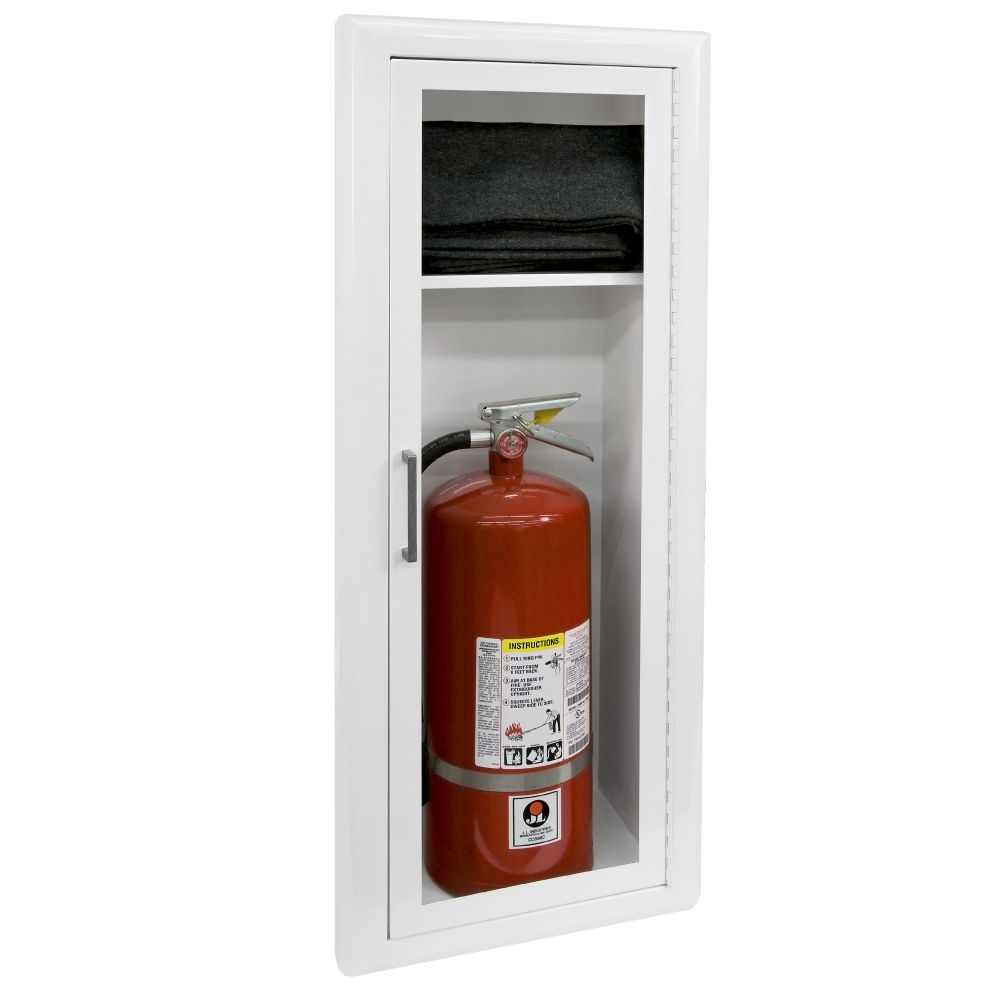

3600 Combination Extinguisher/Blanket Models are available in steel, anodized aluminum or 304 stainless steel with ten door styles to choose from. Five recessed cabinet configurations and a surface-mounted version provide plenty of installation options.

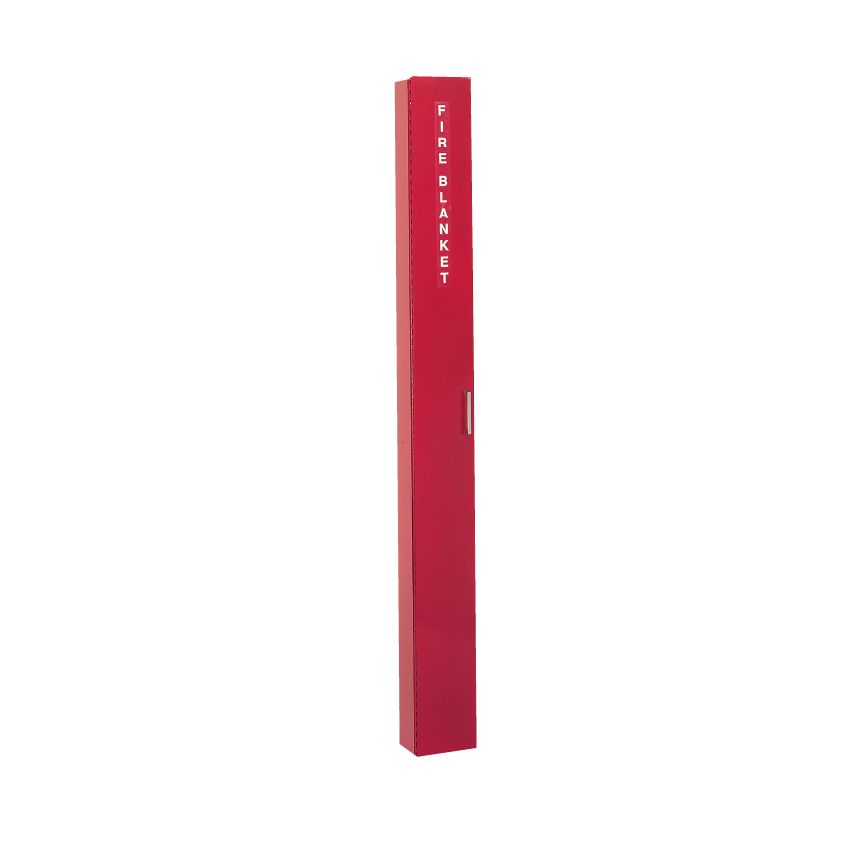

Model 9519S21 is a roller-type blanket cabinet for emergency use. The enclosed blanket is attached to the vertical roller and comes with arm loops to enable a person to wrap themselves in the blanket in one continuous motion.

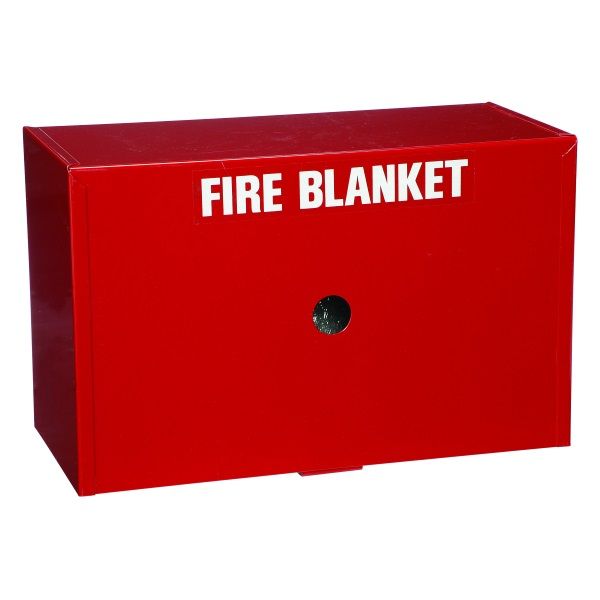

Model 9613S21 is a handy “drop” type with folded blanket. Handle is located at the bottom and is pushed down to open the bottom-mounted door which then releases the blanket.

Downloads

DescriptionSubmittalWarrantyMaintInstallMaster SpecHPDPartsCatalog
Royal 3600 Series Steel CabinetPDFPDFPDFPDFDOCPDFPDFPDF
Royal 3600 Series Steel Fire-Rated CabinetPDFPDFPDFPDFDOCPDFPDFPDF
Royal 3600 Series Aluminum CabinetPDFPDFPDFPDFDOCPDFPDFPDF
Royal 3600 Series Aluminum Fire-Rated CabinetPDFPDFPDFPDFDOCPDFPDFPDF
Royal 3600 Series Stainless CabinetPDFPDFPDFPDFDOCPDFPDFPDF
Royal 3600 Series Stainless Fire-Rated CabinetPDFPDFPDFPDFDOCPDFPDFPDF
Royal Blanket Cabinets Roller & DropdownPDFPDFPDFPDFDOCPDFPDFPDF
Royal Blanket PDFPDFPDFPDFDOCPDF

Cross-Reference

DescriptionSteelAluminumStainlessFire End & Croker*Larsen's*Modern MetalPotter Roemer*
Flat361536253635-FB3612-R-6605
1-1/2" Square361636263636-FB3612-RK--
2-1/2" Rolled361736273637-FB3612-RL-6607-RR
4" Rolled361236223632-FB3612-RA--
4-1/2" Rolled361836283638-FB3612-RM--
Surface Mount361336233633-FB3612-SM-6609
Surface Mount9519521--7162FB68-6-6601
Surface Mount9613521--7164FB1016601-B6603

Click Here to view Fire Protection Cross Reference

* Standard steel, or AL for aluminum, SS for stainless

Stock List

  • 9613S21 – Horizontal Drop Cabinet

Click here for full Stock List

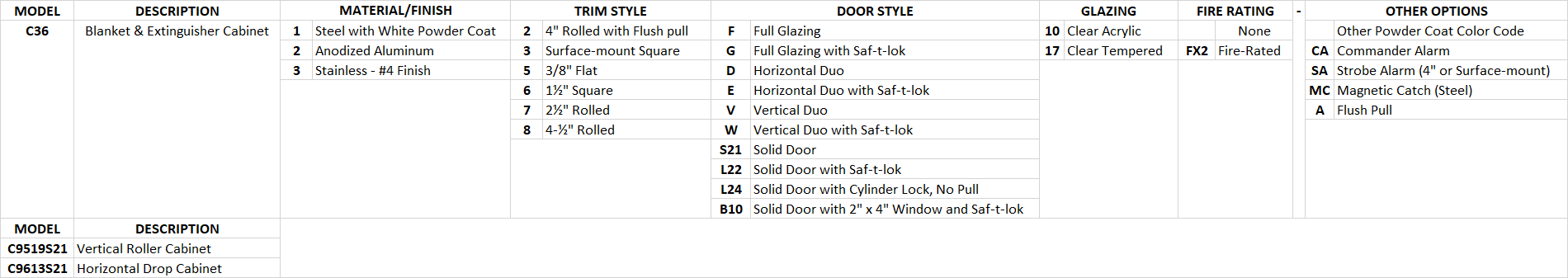

Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.

Technical Articles

Click on the following to view.

  • How to Select the Right Cabinet for Portable Fire Extinguishers
  • Protect High-Value Assets with Alternatives to Dry Chemical Extinguishers
  • Why Use Powder Coat Paint Instead of Baked Enamel
  • Cabinet ADA Mounting Height and Projection

Options & Accessories

Click on the following to view.

  • Color Chart
  • Decals Die Cut Lettering Signs
  • Cabinet Lock Pull Options
  • Cabinet Alarm Options
  • Cabinet Door Trim Material Options
