Product Specifications

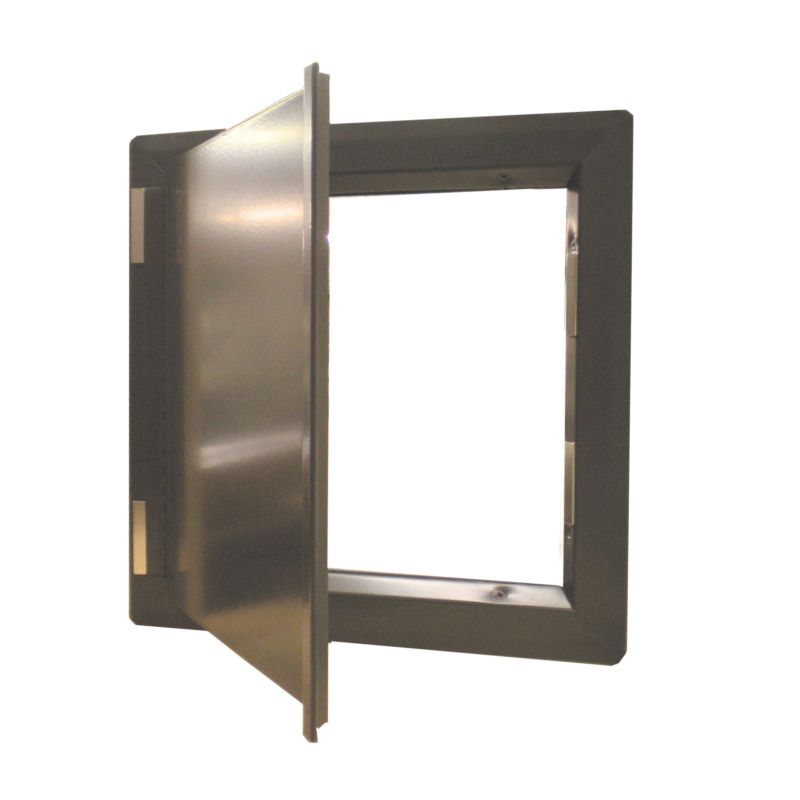

Door: PDVSL – Low Profile for 1-3/4″
Material: 20 gauge cold rolled steel
Construction: 1-1/4″” trim with radius welded corners. Continuous glass retainer, countersunk mounting holes in room side.
Glazing: 3/16-1/4″” glazing to be ordered separately.
Sizes: Min Size 4” x 4”, Max 12” x 35”

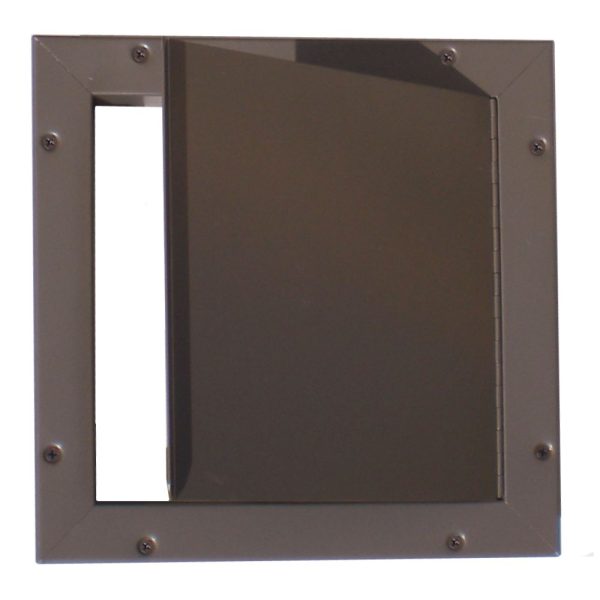

Door: VLFPVC & VLFIGPVC -Square Profile Thru-bolt for up to 3″”
Material: 18 gauge cold rolled steel
Construction: 1-1/4″” trim with radius welded corners. Countersunk mounting holes both sides.
Glazing: 3/16-1-11/16″” glazing to be ordered separately.
Sizes: Min Size 4” x 4”, Max 24” x 36”
Material Options for Vision Lites: Galvanneal steel, zinc-plated.
Fire-Rating: These are not fire-rated products.
