1500A Series - Inverted Split "Y" Blade Louver - With Security Grille Both Sides

1500A Series – Inverted Split “Y” Blade Louver – With Security Grille Both Sides

Air Louvers

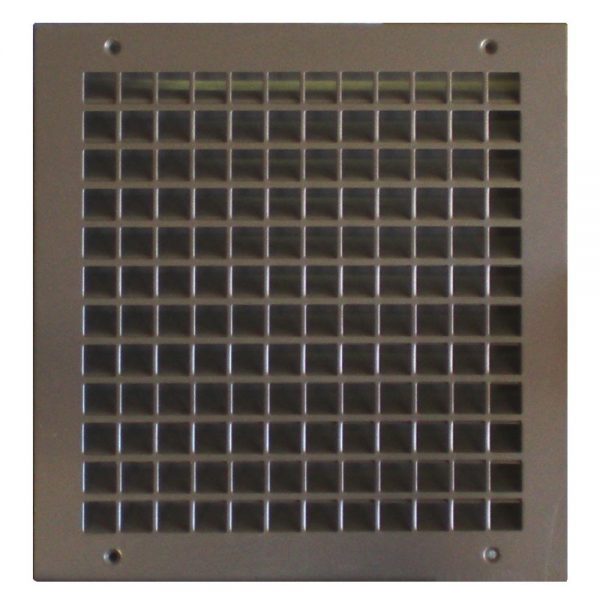

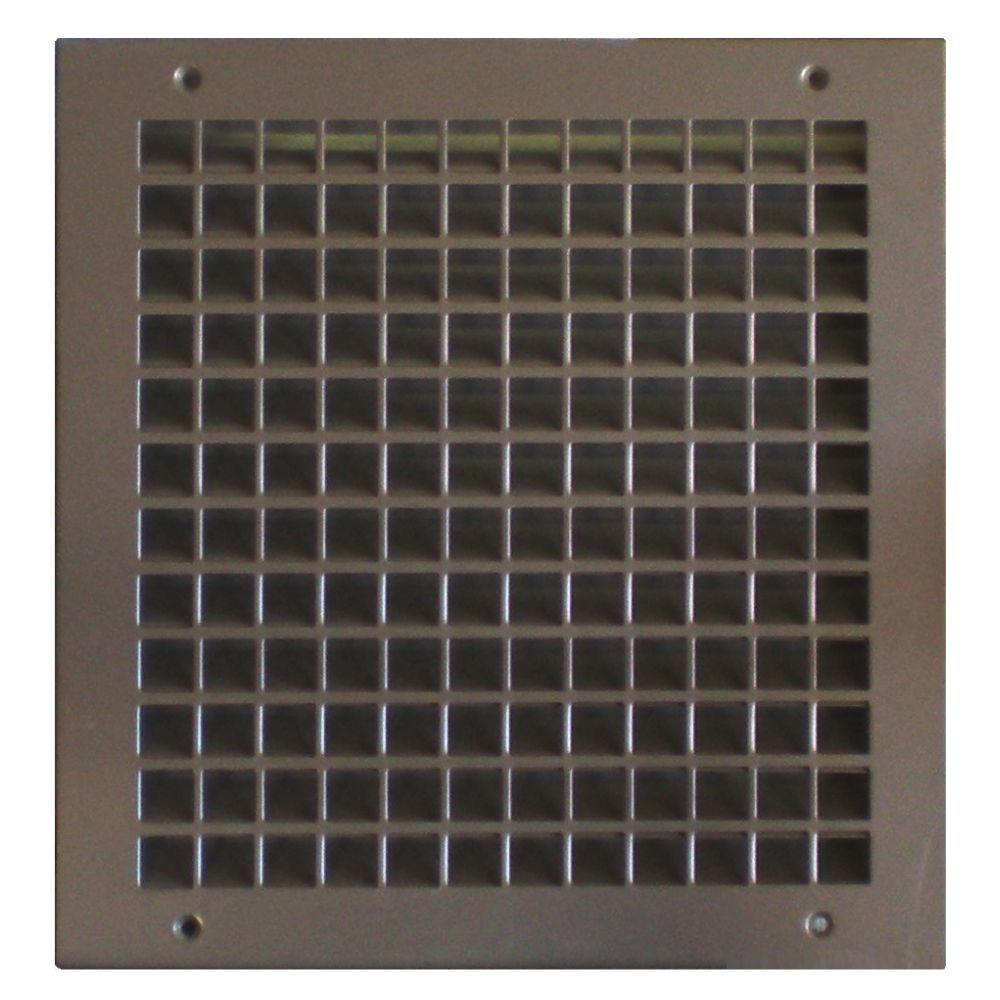

This split Y louver with 1″ blade spacing features a 12 gauge security grille and two-piece thru-bolt louver design. Recommended for vandal-proof building design.

Categories: Door Louvers, Interior Non Fire-Rated Tags: 08 91 26, 1500, 1500A, 1500A 1206, 1500A 1212, 1500A 1406, 1500A 1812, 1500A 1818, 1500A 2412, 1500A 2418, 1500A 2424, 1500A E, Div 8, Division 8, Door Louver, louver grille, security, security louver Brand: Air Louvers
  • Specifications
  • Downloads
  • Cross-Reference
  • Order Guide
  • Options & Accessories
  • Related Products

Product Specifications

Frame and Blades: Cold rolled steel or zinc-plated steel.

Standard Finish: Powder coat bronze on steel.

Construction: Louvers are mechanically attached to the sturdy welded frame. Security grilles with 13/16″ square openings are welded to both sides of the louver.

Mounting for 1-3/4″ Doors: Thru-bolt fasteners.

Downloads

ModelDescriptionSubmittalWarrantyInstall, O & M3 Part SpecsEnvironmentalCatalog
1500ADoor LouverPDFPDFPDFWordPDFPDF

Cross-Reference

ModelNational Guard
1500AL-VRSG-3

View Cross Reference Chart

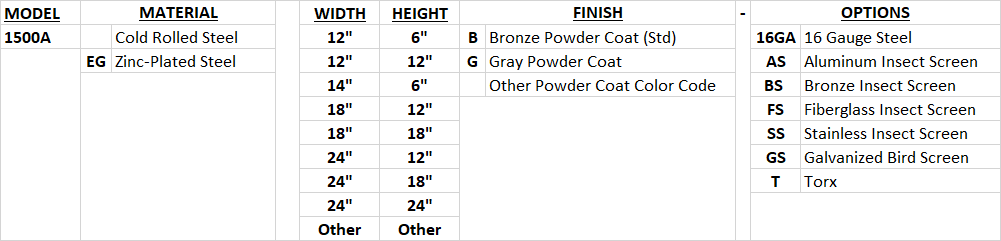

Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.

Options & Accessories

Click on the following to view.

  • Oversize Louvers
  • Color Chart Air Louvers
  • Screen Options

Related Products

  • Thrubolt Detention Series -VLFS10 and VLFS10SP

    Thrubolt Detention Series -VLFS10 and VLFS10SP

    View Product
  • 1200A Series - Twin "Z" Blade Adjustable Louver

    1200A Series – Twin “Z” Blade Adjustable Louver

    View Product
