Insulated Glazing – INSU

Air Louvers

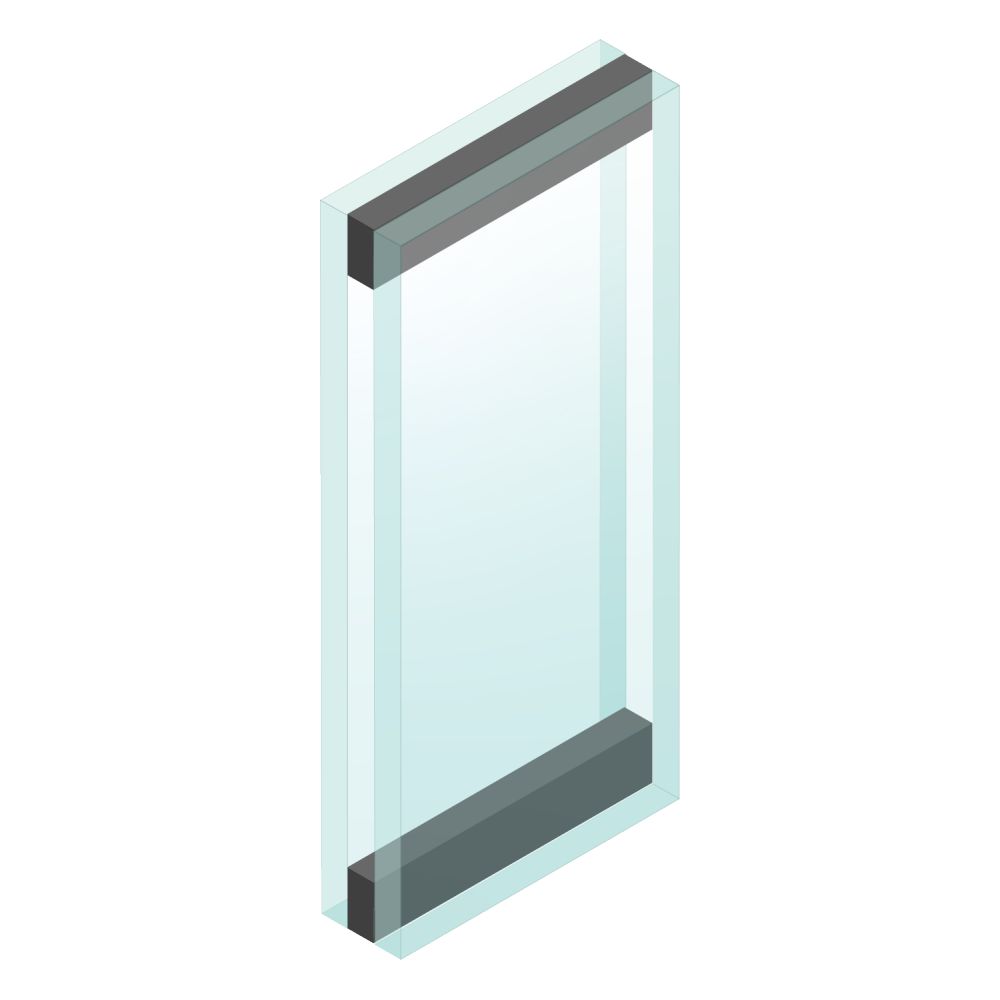

Enhance door STC value with an insulated glass unit. Each includes double panes of glass in a complete sealed, insulated glass unit.

Categories: Door Glazing, Non-Fire Rated & Specialty Tags: 08 80 00, 08 84 00, 08 88 00, 088400, 088800, Div 8, Division 8 Brand: Air Louvers

Product Specifications

Material: Multiple panes of heat-treated clear safety glass separated by spacers .

Thickness: 1/2″ – 1-1/2″

STC: 28-37

Compatible Frames: ThruBoltLine VLFIG, Ezline VLFEZIG, Slimline VSIG, VLFS10, VLFS10SP

Impact Safety Rating: CPSC 16CFR 1201 ( Cat I and II), ANSI Z97.1, CAN/CGSB-12.1-M.

Downloads

Description	Submittal	Warranty	Maint	Catalog
Insulated	PDF	PDF	PDF	PDF

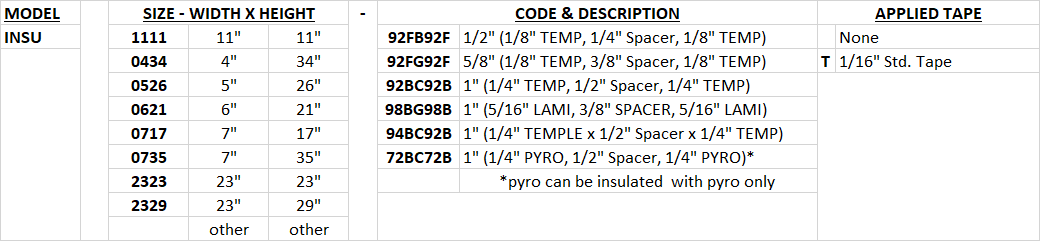

Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.

Options & Accessories

Click on the following to view.
