Product Specifications
Material: 20 gauge cold rolled steel
Standard Finish: Mineral bronze powder coat
Fasteners: Flathead Phillips screws to match finish
Size: Minimum – 4” x 4”, Maximum – see submittals
Glazing Thickness: 3/16″ – 1-11/16″ depending on standard or IG frame
Door: 1″ to 3″ depending on frame

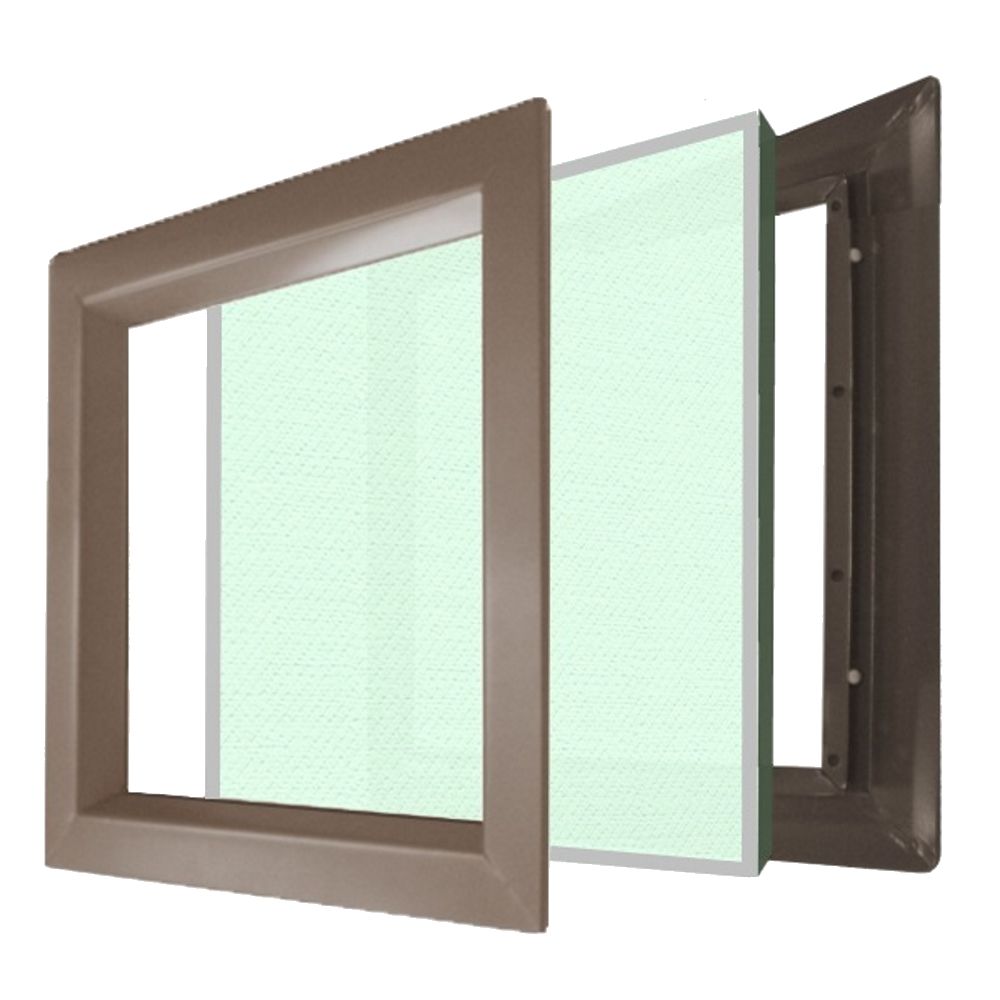

Options: Stainless steel (VLF, VLFIG), galvannealed steel, zinc-plated steel, mullions, UL10C, PAK combination with glazing
FIRE RATINGS: UL listed and labeled to ANSI/UL10B, UL10C and ULC-S104 when installed in properly rated and approved door. Ratings up to 3 hours, depending on the application, glazing and size. Optional Intertek Warnock Hersey fire rated label. Ratings up to 1-½ hours, depending on door type, application glazing
and size.
See Options & Accessories tab for standard and custom PAK Submittals.
