Angled Existing Series for Existing Opening Retrofit – FLDE Series

The retrofit floor door is ready to be installed in an existing floor opening and does not require cast-in-place installation.

Category: Floor Doors Tags: 08 30 00, 08 31 23, 0831 00, aluminum frame, angled, Div 8, Division 8, existing opening, FLDE-2323S, FLDE-2335S, FLDE-2929S, FLDE-2947S, FLDE-3535S, FLDE-4141S, FLDE-4747S, FLDE3547S Brand: JL Industries

Product Specifications

Frame Material: 1/4″ extruded aluminum

Door Material: Reinforced 1/4″ diamond aluminum plate.

Standard Finish: Mill

Frame Construction: Pre-drilled .28″ dia mounting holes for 1/4″ hardware (by others) 1-½ from bottom of frame

Latch: 304 Stainless steel slam latch with flush key operator on exterior and handle opener on inside. Removable stainless 18-8 threaded plug and 5/16″ steel square key included.

Hinge: 304 Stainless steel

Spring: 304 Stainless steel gas assist opener

Hold Open Arm: Stainless steel automatically locks door open

Load: 300 psf

Downloads

Model	Description	Submittal	Warranty	Install, O & M	3 Part Specs	Master Spec	Catalog
FLDE	Retrofit	PDF	PDF	PDF	Word	DOC	PDF

Cross-Reference

Model	Description	Acudor	Babcock Davis	Nystrom	USF Fabrication
FLDE	Existing	FA-300 RETROFIT	BFDEA	FDEA	APS300 RETROFIT
FLDE-2323S	23x23 for 24x24 Opening	FA-300-R 23x23	BFDEA23X23SDL	FDEA23X23SDL	APS300 RETROFIT 23x23
FLDE-2929S	29x29 for 30x30 Opening	FA-300-R 29x29	BFDEA29X29SDL	FDEA29X29SDL	APS300 RETROFIT 29x29
FLDE-2935S	29x35 for 30x36 Opening	FA-300-R 29x35	BFDEA29X35SFL	FDEA29X35SFL	APS300 RETROFIT 29x35
FLDE-3535S	35x35 for 36x36 Opening	FA-300-R 35x35	BFDEA35X35SDL	FDEA35X35SDL	APS300 RETROFIT 35X35

View Cross Reference Chart

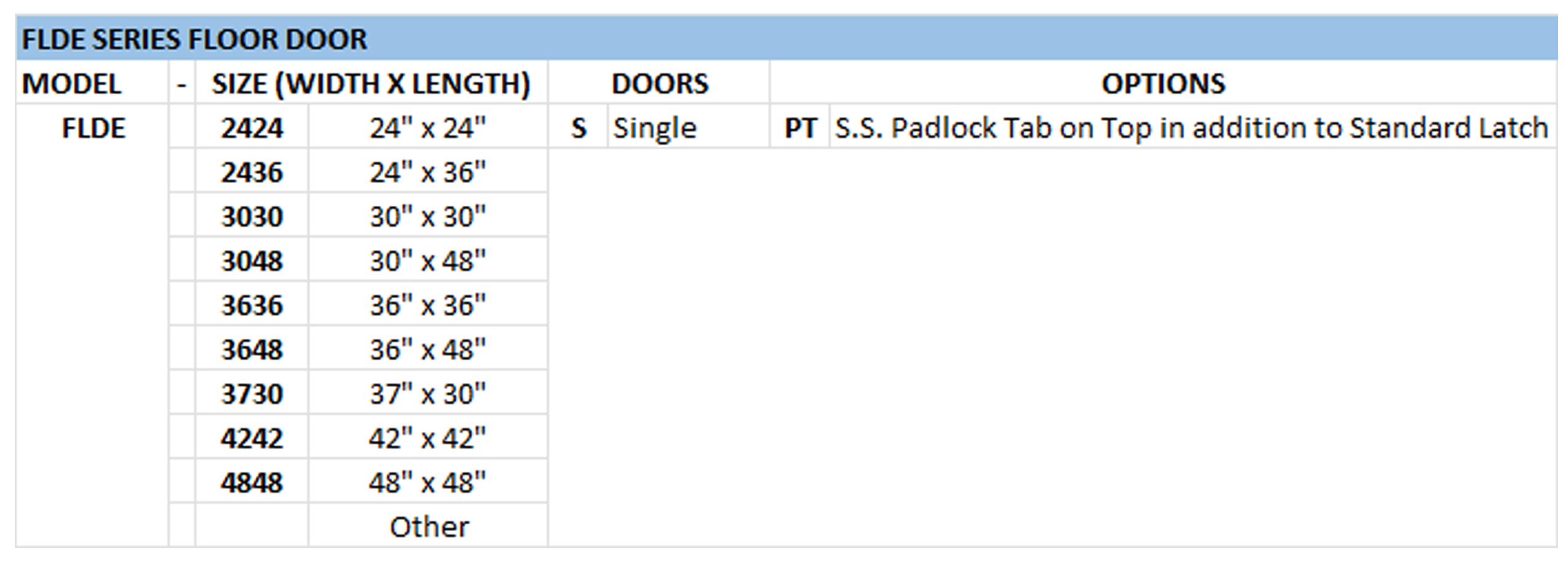

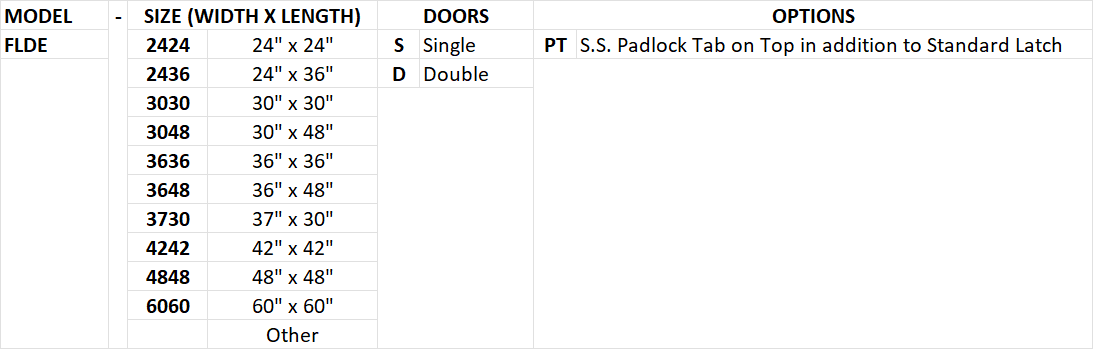

Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.

Technical Articles

Click on the following to view.

Focus on Floor Doors Technical Article

Options & Accessories
