Product Specifications
Frame Material: 12 gauge (2.75 mm) galvanneal steel with ash gray primer
Door Material: 1/4″ (6.35 mm) Aluminum tread plate with mill finish and 14 gauge (1.99mm) galvanneal steel frame and liner with ash gray primer
Insulation: High temperature ceramic fiber insulation
Hinge: Continuous stainless steel hinge
Latch: Stainless steel slam latch operated by a stainless steel recessed turn handle topside.
Spring/Cylinder: 316 stainless steel gas spring cylinders
Self Closing Mechanism: 165 degrees Fahrenheit (74 degrees Celsius) fusible link melts during fire automatically closing door without warning by releasing gas in cylinders. Not available on sizes larger than 42″ (1067 mm) x 60″ (1524 mm).
Installation Kit: Includes anchor straps for installing into concrete and screws for wood frame installations
Live Load: 150 lbs/sq ft (700 kg/sq metre)
Sizes:
Minimum Size: 26″ x 24″ (660 mm 610 mm)
Maximum Size 1 and 2 Hour: 64″ x 60″ (1626 mm x 1524 mm)
Maximum Size 3 Hour: 42″ x 60″ (1067 mm x 1524 mm) or 48″ x 48″ (1219 mm x 1219 mm)
Clear Opening: Size width up to 30″: Width minus 12″ (305 mm) x Length
Size width over 30″: Width minus 8.25″ (210 mm) x Length
FIRE-RATING:
QAI Laboratories listed and labeled for 1, 2 and 3 hours for horizontal fire door assemblies.
Testing Standards: NFPA 288 and CAN/ULC S101

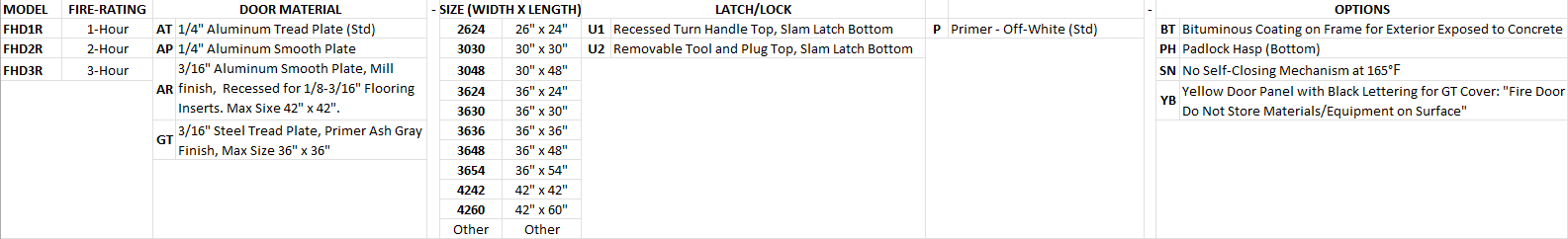

Optional Features: Latches and locks, door material – see submittal for details.
