Fahrenheit Series Double Door Smoke Vent with UL-listed Fusible Link - RVF

Fahrenheit Series Double Door Smoke Vent with UL-listed Fusible Link – RVF

Dur-Red Products

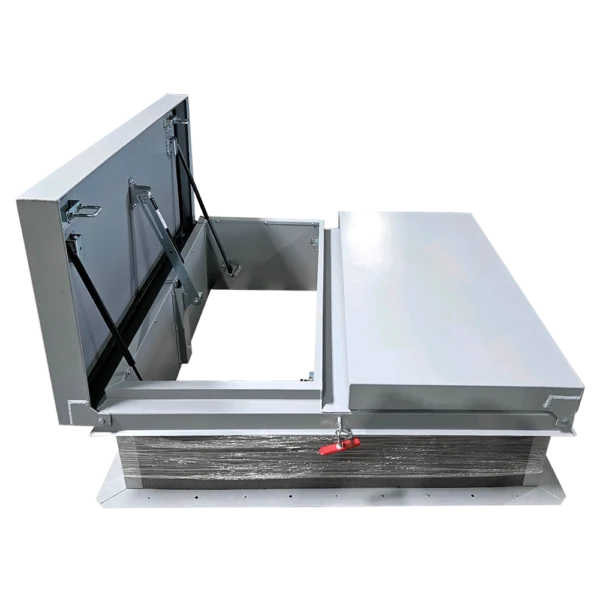

Double door smoke vents automatically open during a fire when a fusible link melts, releasing harmful smoke and fumes. This UL-listed smoke vent has a variety of options to fit many building types. Galvanneal steel and aluminum construction with powder coat finish provide years of durable service. R-6 insulation in curb and cover help to maintain building energy efficiency. Formerly known as the UFV, UFSH or FSH series.

Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Product Specifications

Material: Curb is 14 gauge galvanneal steel and cover is 11 gauge aluminum with 18 gauge aluminum cover liner

Finish: Silver textured powder coat paint

Gasketing: Weatherproof EPDM sponge rubber adhesive-backed seal

Insulation: 1” polyisocyanurate (R-6) on curb and in cover

Hinges: Heavy-duty aluminum hinge with bolt pin

Hold-Open Arm: Clear zinc-plated steel hold-open arm

Latches: Rotary latch mechanism designed to hold covers closed against 90psf wind uplift. Opens manually with internal and external manual pull handles and automatically with fusible link.

Operation: Gas springs automatically open covers when 165°F fusible link melts or when exterior or interior pull handles are utilized. The hatch lids are dampened by a hydraulic shock to control operating speed.

Certifications: UL 793 listed and labeled up to 48” x 96”

Downloads

DescriptionSizeSubmittalWarrantyInstall & Maint3 Part SpecsCAD (dwg)Catalog
Double Door Smoke Vent AllPDFPDFPDFDOCPDF
RVFGA-4848ST48" x 48"PDFPDFPDFDOC.DWGPDF
RVFGA-4896ST48" x 96"PDFPDFPDFDOC.DWGPDF

Cross-Reference

Part NumberPrevious Model Dur-Red & JLCurbMaterialAcudorBabcock-DavisNystromBilcoMilcor
RVFGA-4848STUFSH-4848/UFV-1/RVFGA-4848ST48” x 48”Steel & Aluminum-BSVSB48X48D1SVSB48X48D1DSH4848AU-LP-4848
RVFGA-4872STUFSH-4872/UFV-2/RVFGA-4872ST48” x 72”Steel & Aluminum-BSVSB48X72D1SVSB48X72D1DSH4872AU-LP-4872
RVFGA-4890STUFSH-4890/UFV-3/RVFGA-4890ST48” x 90”Steel & Aluminum-BSVSB48X90D1SVSB48X90D1DSH4890AU-LP-4890
RVFGA-4896STUFSH-4896/UFV-4/RVFGA-4896ST48” x 96”Steel & Aluminum-BSVSB48X96D1SVSB48X96D1DSH4896AU-LP-4896
RVFGA-6060STFSH-6060/UFV-5/RVFGA-6060ST60” x 60”Steel & Aluminum-BSVSB60X60D1SVSB60X60D1DSH6060AU-LP-6060
RVFGA-6096STFSH-6096/UFV-6/RVFGA-6096ST60” x 96”Steel & Aluminum-BSVSB60X96D1SVSB60X96D1DSH6096AU-LP-6096
RVFA-4848ST-48” x 48”AluminumSVA4848BSVSA48X48D1SVSA48X48D1DSH4848B-
RVFA-4872ST48” x 72”AluminumSVA4872BSVSA48X72D1SVSA48X72D1DSH4872B-
RVFA-4890ST48” x 90”AluminumSVA4890BSVSA48X90D1SVSA48X90D1DSH4890B-
RVFA-4896ST48” x 96”AluminumSVA4896BSVSA48X96D1SVSA48X96D1DSH4896B-
RVFA-6060ST60” x 60”AluminumSVA6060BSVSA60X60D1SVSA60X60D1DSH6060B-
RVFA-6096ST60” x 96”AluminumSVA6096BSVSA60X96D1SVSA60X96D1DSH6060B-

View Cross Reference Chart

Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.
