Orbit ABC Fire Extinguisher

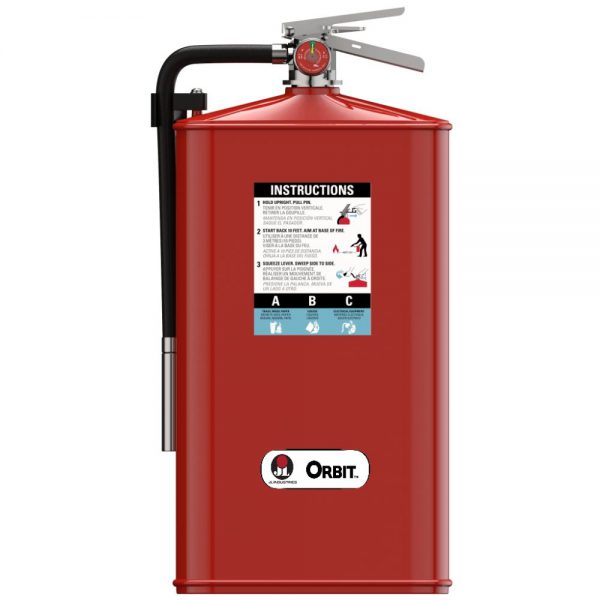

Orbit ABC Series – Multi-Purpose ABC Low Profile Fire Extinguisher

JL Industries

Low profile extinguisher that is as much as 40% slimmer than other models. ABC dry chemical is a multipurpose extinguishing agent that is suitable for use in offices, classrooms, churches, parking garages and retail. Not recommended for use on sensitive electronic equipment. These units contain specially fluidized and siliconized mono ammonium phosphate powder, which smothers and breaks the chain reaction on Class B fires, fuses and insulates Class A fires, and is a non-conductor of electricity. Non-toxic.
It is the only 10-lb. fire extinguisher that is always compliant with ADA protruding object regulations and local building codes.

Categories: ABC Dry Chemical, Fire Extinguishers Tags: 10 44 16, 10 44 16.13, 1044616, AB, ammonium phosphate powder, div 10, Division 10, fe10v, fe10vb, LOW PROFILE, portable fire extinguishers, slim Brand: JL Industries
  • Specifications
  • Downloads
  • Technical Articles
  • Options & Accessories
  • Related Products

Product Specifications

Conforms to Test Standards: CAN/ULC-S504 — ANSI/UL299 & CAN/ULC S508 — ANSI/UL711

Operation: Squeeze the lever, which opens the valve, allowing the chemical to be forced out. Upright squeeze grip operation.

Temperature Range: Approved to -40°F (-40°C) – 120° F (49°C)

Construction: Non-Magnetic corrosion-resistant tempered aluminum vessel with aluminum valve and siphon tube. Also features visual pressure gauge, stainless steel pull pin, handles, bracket and button hook. Durable powder coat finish. Tested to 3 Tesla.

Valve Material: Aluminum

Downloads

ModelDescriptionSubmittalWarrantyInstall, O & M3 Part SpecsMaster SpecSDSCatalog
Orbit ABCMulti-Purpose, Low ProfilePDFPDFPDFWordDOCPDFPDF

Technical Articles

Click on the following to view.

  • Protect High Value Assets with Alternatives to Dry Chemical Fire Extinguishers
  • Selecting Cabinets for Fire Extinguishers
  • Fire Extinguishers in Healthcare Facilities NFPA 99
  • Fire Extinguisher Cabinet ADA Mounting Height and Projection

Options & Accessories

Click on the following to view:

  • FE Cabinet Orbit Low Profile Submittal
  • FE Cabinet Orbit Low Profile FX Submittal

Related Products

  • Orbit Series - Low Profile Fire Extinguisher Cabinet

    Orbit Series – Low Profile Fire Extinguisher Cabinet

    View Product
  • FD Series - 1 to 3 Hour Insulated Access Panels

    FD Series – 1 to 3 Hour Insulated Access Panels

    View Product
