TM Series – General Purpose Access Panel

The TM Series provides a full range of standard options in steel, galvanneal steel or stainless steel for non fire-rated wall and ceiling applications. We offer four flange options – standard 1” flange, wallboard bead flange to be taped and mudded, a plaster flange, or extended plaster flange. Our sturdy construction with a concealed hinge provides a cost-effective, yet attractive access solution for any building.

Categories: Access Panels, Non-Rated Tags: 08 10 00, 08 30 00, 08 31 00, 08 31 13, 08 31 16, 081000, 083000, 083100, 083113, 083116, 9TM, 9TME, 9TMG, 9TMP, 9TMS, access door, ceiling panel, drywall bead, flush panel, metal door, multi purpose, Non Rated access panel, plaster extended flange, plaster flange, PW, PWE, stainless steel panel, steel panel, TM, tm access panel, TM panel, tm wall panel, TM-0808, TM-0808C, TM-0808L, TM-0812, TM-0812C, TM-0812L, TM-1010, TM-1010C, TM-1010L, TM-1212, TM-1212C, TM-1212L, TM-1216, TM-1216C, TM-1216L, TM-1218C, TM-1218L, TM-122, TM-1224C, TM-1224L, TM-1414, TM-1414C, TM-1414L, TM-1616, TM-1616C, TM-1616L, TM-1620, TM-1620C, TM-1620L, TM-1818, TM-1818C, TM-1818L, TM-2024, TM-2024C, TM-2024L, TM-2030, TM-2030C, TM-2030L, TM-2222, TM-2222C, TM-2222L, TM-2230, TM-2230C, TM-2230L, TM-2424, TM-2424C, TM-2424L, TM-2430, TM-2430C, TM-2430L, TM-2436, TM-2436C, TM-2436L, TM-3030, TM-3030C, TM-3030L, TM-3636, TM-3636C, TM-3636L, TME, tme-0808, tme-1010, tme-1212, tme-1414, tme-1616, tme-1620, tme-1818, tme-2222, tme-2230, tme-2424, tme-2424 Division 8, TMG, TMP, TMP-0808, TMP-1010, TMP-1212, TMP-1414, TMP-1616, TMP-1620, TMP-1818, TMP-2222, TMP-2230, TMP-2424, TMS, TMS-0606, TMS-0808, TMS-0812, TMS-1010, TMS-1212, TMS-1216, TMS-1218, TMS-1224, TMS-1414, TMS-1616, TMS-1620, TMS-1818, TMS-2024, TMS-2030, TMS-2222, TMS-2230, TMS-2236, TMS-2424, TMS-2436, TMS-3030, TMS-3636, TMW, utility door, wall panel, wallboard bead, WB tm-0606 Brand: JL Industries

Product Specifications

Frame and Door Material: Cold rolled steel, galvannealed or stainless.

Standard Finish: Powder coat white or 304 stainless steel with #4 finish (TMS).

Hinge: Concealed hinge.

Latch: Flush screwdriver-operated cam standard.

Latch Options: Cylinder lock, knurled knob, Torx head cam, spanner head cam, hex head cam, mortise lock prep or mortise lock installed.

Flange: Standard exposed (TM), drywall (TMW), plaster (TMP) or extended plaster (TME).

Other Options: Double door, removable door,gasketing, view window.

Note: Not all sizes and options are listed, or available for all models, see submittal for details.

Downloads

Model	Description	Submittal	Warranty	Install, O & M	3 Part Specs	Master Spec	Environmental	BIM (rfa)	Catalog	Buy America
TM	Standard Flange	PDF	PDF	PDF	Word	DOC	PDF	ZIP	PDF	PDF
TMW	Wallboard Flange	PDF	PDF	PDF	Word	DOC	PDF	ZIP	PDF	PDF
TMP	Plaster Flange	PDF	PDF	PDF	Word	DOC	PDF	ZIP	PDF	PDF
TME	Extended Plaster Flange	PDF	PDF	PDF	Word	DOC	PDF	ZIP	PDF	PDF
TMS Stainless	Standard Flange	PDF	PDF	PDF	Word	DOC	PDF	ZIP	PDF	PDF

Cross-Reference

Model	Prev	Acudor	Babcock-Davis	Cendrex	Elmdor	Karp	Larsen's MFG	Mifab	Milcor	Nystrom	Williams Bros.
TM	TM	UF-5000	B-NT	AHD	DW	DSC-214M	L-MPG	UA	M	NT	WB-GP
TMS	TMS	UF-5000 Stainless	B-NT Stainless	-	-	DSC-214M Stainless	L-MPSS	UA-SS	MS	NT-Stainless	WB-GPSS
TMW	WB	DW-5040	B-NW	AHD GYP	DWB	-	L-DWC	MDW	DW	NW	WB-DW
TMP	PW	-	B-NP	-	PW	-	-	-	-	NP	-
TME	PWE	PS-5030	-	AHD PLY	ML	DSC-214PL	L-PSW	CAD-FL-PL	K	-	WB-PL

View Cross Reference Chart

Stock List

TM-0606CW – Cam Latch, White
TM-0808CW – Cam Latch, White
TM-1010CW – Cam Latch, White
TM-1212CW – Cam Latch, White
TM-1212LW – Lock, White
TM-1224CW – Cam Latch, White
TM-1414CW – Cam Latch, White
TM-1616CW – Cam Latch, White
TM-1616LW – Lock, White
TM-1818CW – Cam Latch, White
TM-1818LW – Lock, White
TM-2030CW – Cam Latch, White
TM-2222CW – Cam Latch, White
TM-2230CW – Cam Latch, White
TM-2230LW – Lock, White
TM-2236CW – Cam Latch, White
TM-2424CW – Cam Latch, White
TM-2424LW – Lock, White
TM-2430CW – Cam Latch, White
TM-2436CW – Cam Latch, White
TM-3030CW – Cam Latch, White
TM-3636CW – Cam Latch, White
TMS-0808C – Cam Latch, Stainless
TMS1212C – Cam Latch, Stainless
TMS-2424C – Cam Latch, Stainless
TMW-0808CW – Cam Latch, White
TMW-1212CW – Cam Latch, White
TMW-1414CW – Cam Latch, White
TMW-1818CW – Cam Latch, White
TMW-2424CW – Cam Latch, White

Click here for full Stock List

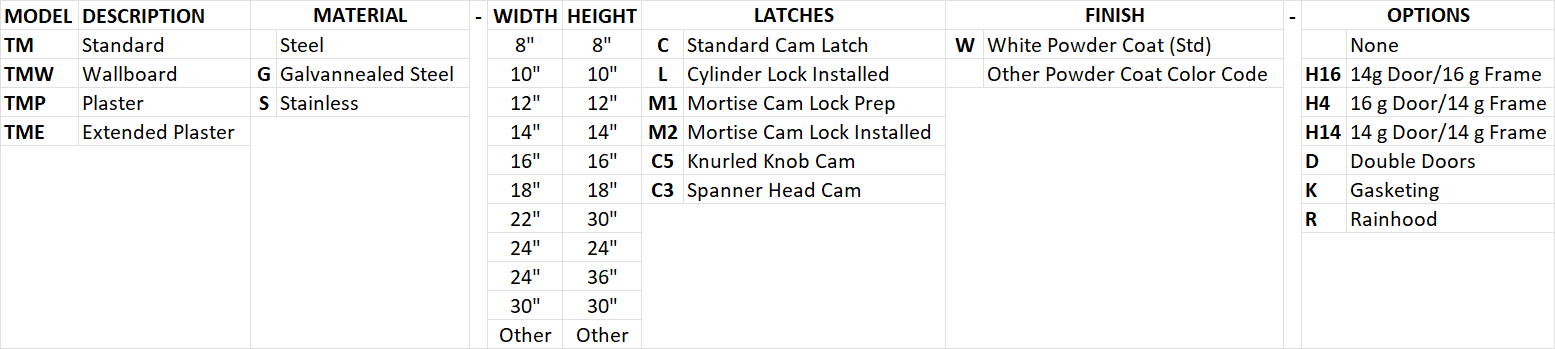

Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.

Options & Accessories

Click on the following to view.
