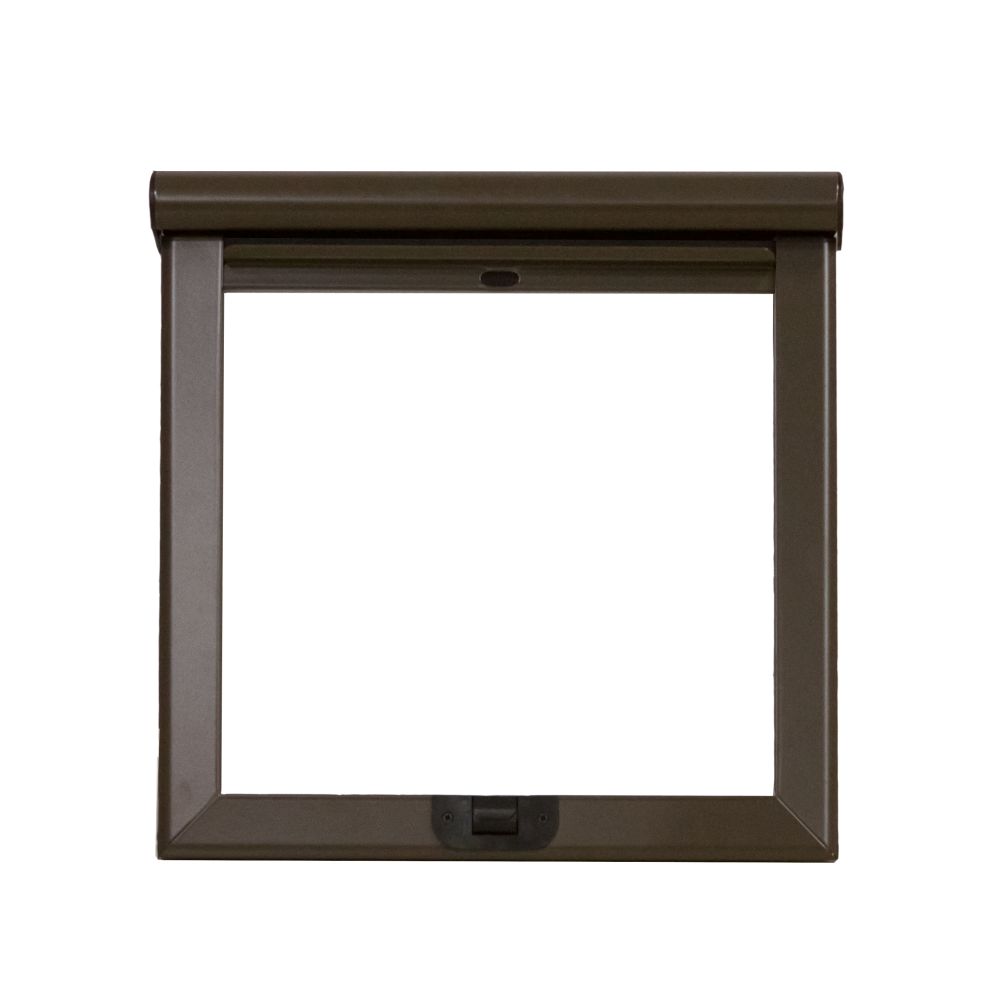

Material: 18 gauge aluminum frame
Finish: Mineral bronze powder coat
Construction: 1-¼” x 1/4” frame with radius corners, mitered and welded. 7/8” deep channels prevent light leaks.
Roller: Spring-operated roller In an aluminum housing with black plastic end caps. A black plastic push-button latch releases the shade to retract into the roller housing.
Shade: Durable, 100% opaque, black, light blocking fabric material attached to a rigid pull-down bar.
Mounting: Adhesive backed hook and loop fastener must attach to a metal vision lite for doors. Sidelite version can be ordered to mount to the face of the sidelite, or to glazing stop using double sided tape.
Rating for Use on Doors: UL tested to maintain existing door, vision lite and glazing fire ratings up to 90 minutes for steel and wood doors, both temp-rise and non-temp-rise per ANSI/UL 10B (CAN/ULC-S104) and ANSI/UL 10C.
Sizes for Doors: Order in 1/8” Increments. UL-Listed Sizes: Must have overall area (WxH) no less than 178.9 square inches and no larger than 1141.3 square inches. Max UL-Listed Size: 31-⅜” x 36-⅜. Non-rated sizes up to 31-3/8″ x 37-3/8″.
Sizes for Sidelites: Minimum 7″ x 10″, maximum 22″ x 88″.
