Product Specifications

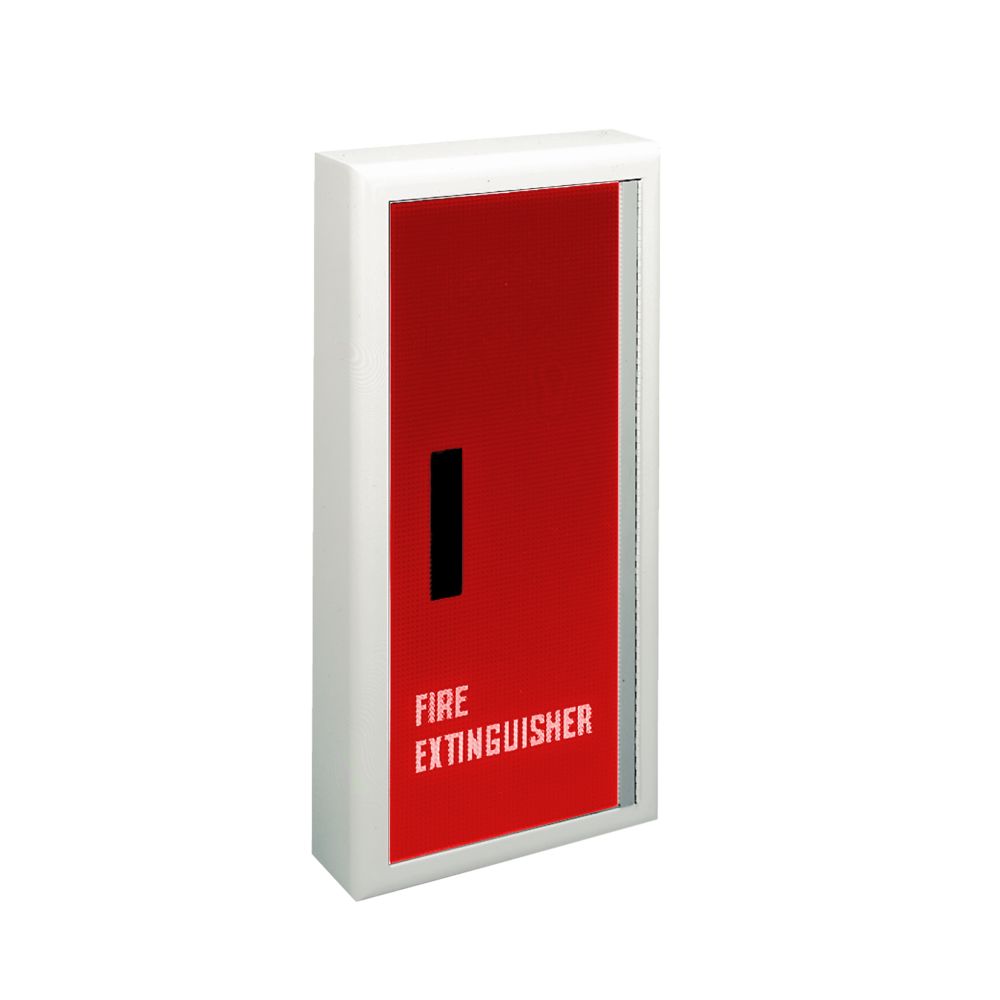

Door Construction: The “stippled” texture of the opaque doors and exclusive aluminum backing protect the lettering, which is available in 3 colors and letter styles. Clear polycarbonate doors are also available. Flush cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch.
Trim Construction: White painted steel, anodized aluminum or 304 stainless with #4 finish. 1 3/4″ Face trim on frame.
Trim Styles: Recessed – 3/8″ flat trim or trimless. Semi-Recessed – 1 1/4″or 1 1/2″ Square Edge or 2 1/2″, 3″or 4″ (recessed pull), 4 1/2″ Rolled Edge. Surface-mount has a square edge or optional rolled edge upon request.
Tub: Constructed of cold rolled steel with white powder coat finish. Surface-mounted models have tubs of the same material and finish as the trim.
Options: Glazing, pulls, paint colors, dark bronze anodized aluminum, stainless finishes, alarms.
Listings and Ratings: UL listed and labeled as an approved membrane penetration firestop system for up to 2 hours in accordance with UL 1479 (ASTM-E814) and CAN/ULC-S115.
