Product Specifications
Material: 18 gauge aluminum frame
Finish: Mineral bronze powder coat

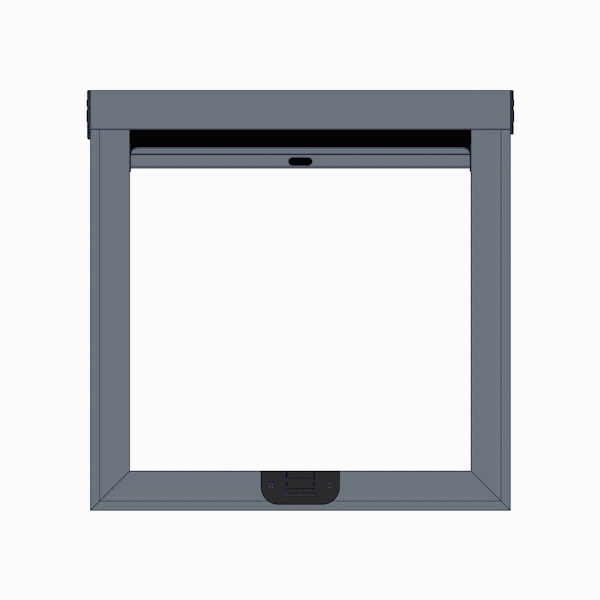

Construction: 1-¼” x 1/4” frame with radius corners, mitered and welded. 7/8” deep channels prevent light leaks.
Roller: Spring-operated roller In an aluminum housing with black plastic end caps. A black plastic push-button latch releases the shade to retract into the roller housing.
Shade: Durable, 100% opaque, black, light blocking fabric material attached to a rigid pull-down bar.
Mounting: Model PS – Adhesive backed hook and loop fastener must attach to a metal vision lite for doors. Model PSL for sidelites is mounted with screws to the face of the sidelite frame.
Rating for Use on Doors: UL tested to maintain existing door, vision lite and glazing fire ratings up to 90 minutes for steel and wood doors, both temp-rise and non-temp-rise per ANSI/UL 10B (CAN/ULC-S104) and ANSI/UL 10C.
Sizes for Doors: Order in 1/8” Increments. UL-Listed Sizes: Must have overall area (WxH) no less than 178.9 square inches and no larger than 1141.3 square inches. Max UL-Listed Size: 31-⅜” x 36-⅜. Non-rated sizes up to 31-3/8″ x 37-3/8″.
Sizes for Sidelites: Minimum 7″ x 10″, maximum 22″ x 88″.
