Crownline Series - Fire Department Valve and Hose Cabinet

Crownline Series – Fire Department Valve and Hose Cabinet

JL Industries

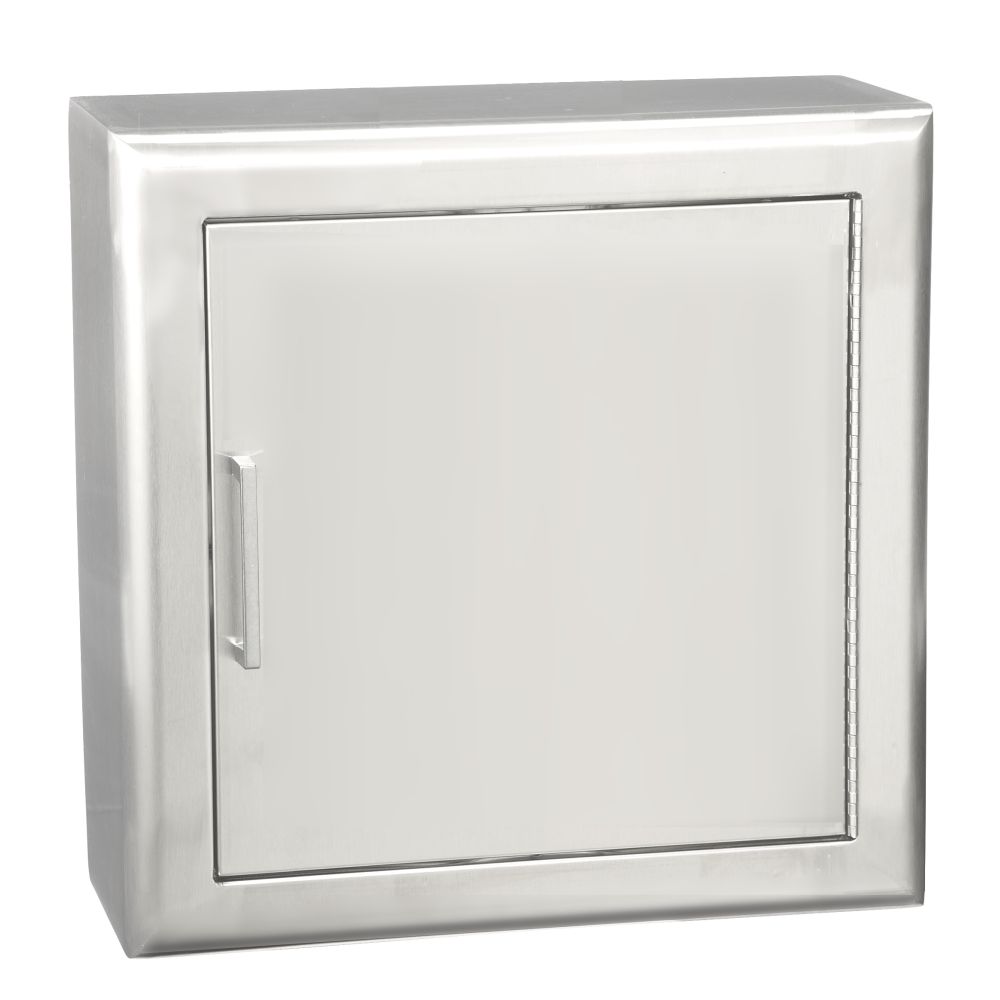

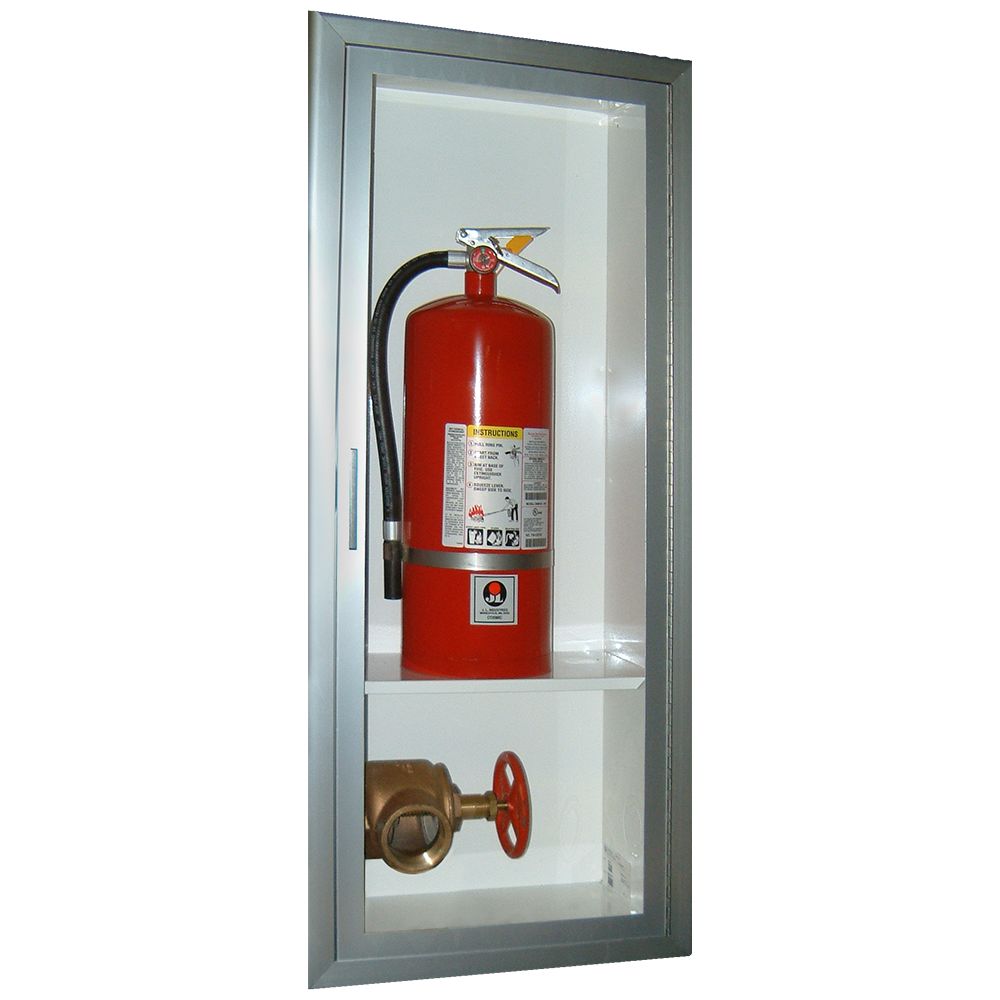

Crownline cabinets provide protection for fire department connections including valves and hoses. Non fire-rated cabinets include multiple knockouts for convenient plumbing connection. Select from several sizes that can accommodate multiple fixtures, hose racks and extinguishers.
From fully-recessed to surface mounted cabinets, this series offers architectural finishes in steel, aluminim and stainless steel with several door styles to choose from.

Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Product Specifications

Trim Construction: White painted steel, anodized aluminum or 304 stainless with #4 finish. 1 3/4″ Face trim on frame.

Trim Styles: Recessed – 3/8″ flat trim or trimless. Semi-Recessed – 1 1/4″or 1 1/2″ Square Edge or 2 1/2″, 3″or 4″ (recessed pull), 4 1/2″ Rolled Edge. Surface-mount has a square edge or optional rolled edge upon request. Stainless surface-mount cabinets have rolled edge.

Tub: Constructed of cold rolled steel with white powder coat finish.  Surface-mounted models have tubs of the same material and finish as the trim.

Options: Fire-rated, paint colors, dark anodized aluminum, pulls, alarms.

Listings and Ratings: UL listed and labeled as an approved membrane penetration firestop system for up to 2 hours in accordance with UL 1479 (ASTM-E814) and CAN/ULC-S115.
